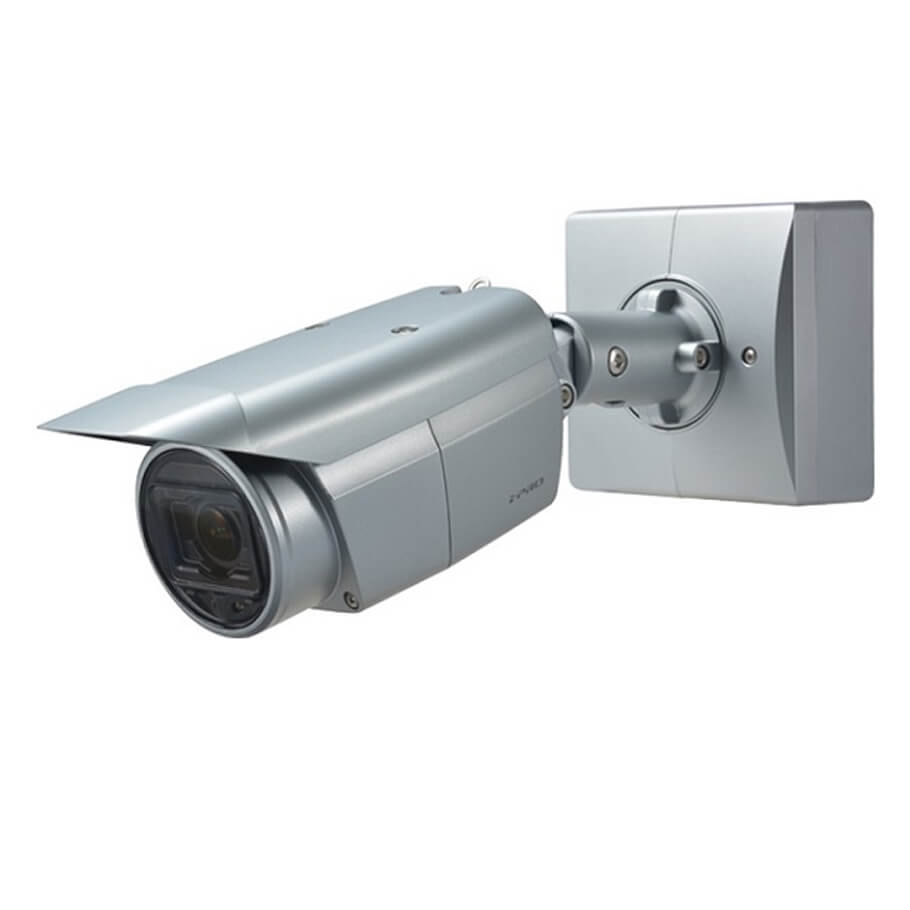

Camera IP hồng ngoại 2.0 Megapixel I-PRO WV-S1531LN
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: Lên đến 60 fps.
- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG, H.264, JPEG.
- Ống kính: 2.8 - 10 mm.
- Độ nhạy sáng tối thiểu: Color: 0.012 lx, BW: 0.006 lx; B/W: 0.0 lux (with IR LED on).
- Góc quan sát: Ngang 31° ~ 112°, Dọc 17° ~ 60°.
- Tầm quan sát hồng ngoại: 40 mét.
- Chống ngược sáng thực WDR 144dB.
- Hỗ trợ tính năng iA (intelligent Auto).
- Intelligent VMD (i-VMD): Type4 (Xâm nhập, Lảng vảng, Sai hướng, Vượt vạch, Đối tượng, Thay đổi cảnh) *Bundled License
- Hỗ trợ thẻ nhớ tối đa 256GB.
- Tiêu chuẩn chống bụi và nước: IP66 (camera quan sat thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nhiệt độ hoạt động: -40°C to 50°C.
Đặc tính kỹ thuật
| Model | WV-S1531LN |
| Camera | |
| Image Sensor | Approx. 1/3 type MOS image sensor |
| Minimum Illumination | - Color: 0.012 lx, BW: 0.006 lx (F1.6, Maximum shutte: Off (1/30s), AG: 11) BW: 0 lx (F1.6, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.0008 lx, BW: 0.0004 lx (F1.6, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 144dB (Super Dynamic: On) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off) |
| Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1(IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off, Maximum irradiation distance: 40 m {Approx. 131 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type 4 *Bundled License |
| Stabilizer | On/ Off (available only in the 30 fps mode) |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Image rotation | 0°/ 90°/ 180°/ 270 ° |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Focus Adjustment | Auto back focus/ Manual |
| Lens | |
| Focal length | 2.8 - 10 mm {1/8 inches - 13/32 inches} |
| Zoom ratio | 3.6 x (Motorized zoom / Motorized focus) |
| Angular Field of View | [16 : 9 mode] Horizontal : 31° (TELE) – 112° (WIDE) Vertical : 17° (TELE) – 60° (WIDE) [4 : 3 mode] Horizontal : 26° (TELE) – 91° (WIDE) Vertical : 19° (TELE) – 67° (WIDE) |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 3.4 (TELE) |
| Focusing Range | 0.3 m {11-13/16 inches} – ∞ |
| Adjusting Angle | |
| Ceiling mounting | - Horizontal: ±180° (PAN rotation part) - Vertical: 0° to 100° (TILT rotation part) - Yaw: –190° to +100° (YAW rotation part) |
| Wall mounting | - Horizontal: ±100 ° (TILT rotation part)* - Vertical: ±100 ° (TILT rotation part)* - Yaw: –190 ° to +100 ° (YAW rotation part) * You can change between horizontal and vertical angels by adjusting the PAN rotation part. |
| Browser GUI | |
| Camera Control | Brightness, AUX On/ Off |
| Audio | Mic (Line) Input : On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment : Low/ Middle/ High |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/JPEG (MJPEG) | - 2 Megapixel [16 : 9] (30/60 fps) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180 - 3 Megapixel [4 : 3] (30 fps) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240 |
| H.265/H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
| JPEG | Image Quality: 10 steps |
| Smart Coding | - Smart Facial Coding: On (Smart Facial Coding)/ On (Auto VIQS)/ Off - GOP (Group of pictures): On (Advanced)/ On (Mid)/ On (Low)/ Off |
| Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Audio transmission mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card | - H.265/ H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure Compatible SDXC/SDHC/SD - Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/Output | |
| Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
| Audio input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) |
| External I/O Terminals | ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input), ALARM IN2 (Alarm input 2/ ALARM OUT), ALARM IN3(Alarm input 3/ AUX OUT) (x1 for each) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | - DC power supply: DC12 V 750 mA, Approx. 9.0 W - PoE (IEEE802.3af compliant) Device: DC48V/195 mA, Approx. 9.4W (Class 0 device) |
| Ambient Operating Temperature | - IR LED: On -40°C to +50°C (-40°F to 122°F), IR LED: Off -40°C to +60°C (-40°F to 140°F) (Power On range: –30°C to +60°C {–22°F to +140°F}) |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions * Installing using the base bracket |
130 mm (W) x 130 mm (H) x 337 mm (L) {5-1/8 inches (W) x 5-1/8 inches (H) x 13-9/32 inches (L)} |
| Mass (approx.) | Approx. 1.6 kg {3.53 lbs} When using the adapter box : Approx. 2.1 kg {4.63 lbs} |
| Finish | Main body: Aluminum die cast, Metallic silver Front cover section clear part: Clear polycarbonate resin (ClearSight coating) |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
