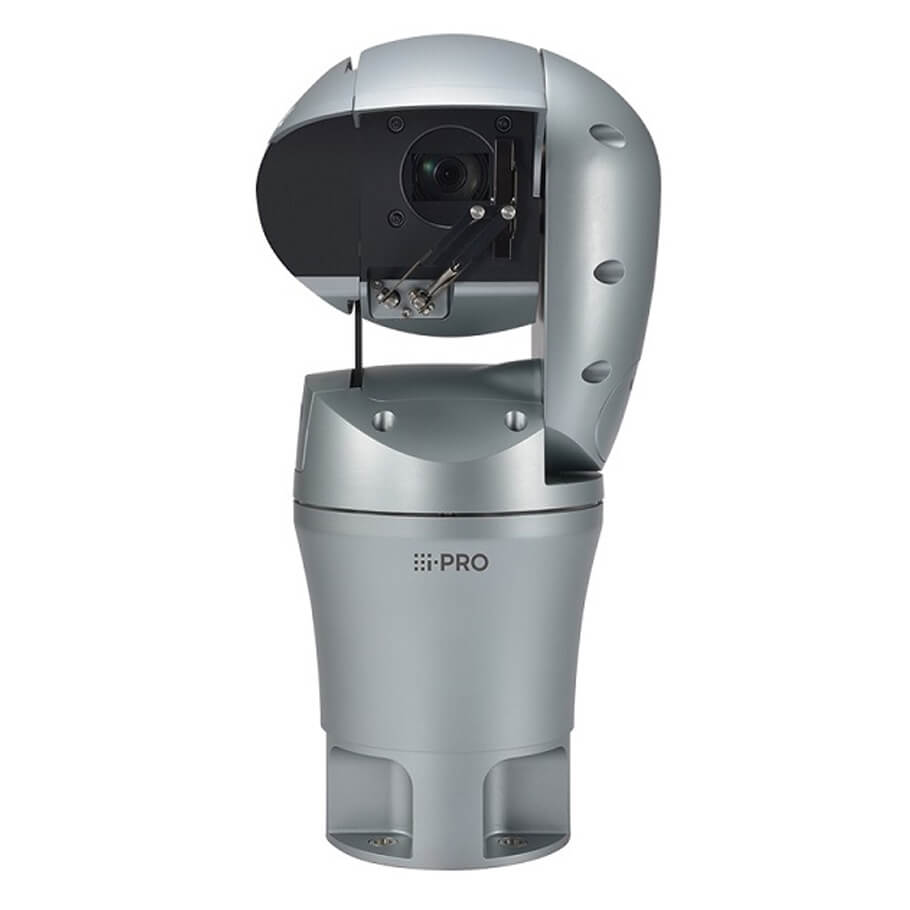

Camera IP Speed Dome hồng ngoại 2.0 Megapixel I-PRO WV-SUD638
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: Lên đến 60 fps.
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Ống kính: 4.3 mm - 129 mm.
- Zoom quang: 30x.
- Zoom số: 24x.
- Tầm quan sát hồng ngoại: 150 mét.
- Độ nhạy sáng tối thiểu: Color: 0.06lx, BW: 0.02lx; B/W: 0.0lux (with IR LED on).
- Góc quay ngang : liên tục 360° endless.
- Tiêu chuẩn chống bụi và nước: IP66, IK67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nhiệt độ hoạt động: -50°C ~ 60°C.
Đặc tính kỹ thuật
| Model | WV-SUD638 |
| Camera | |
| Image Sensor | Approx. 1/3 type MOS image sensor |
| Minimum Illumination | - Color: 0.06 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High) 0.004 lx (F1.6, Maximum shutter: max. 16/30 s, AGC: High) - BW: 0.02 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High) 0.001 lx (F1.6, Maximum shutter: max. 16/30 s, AGC: High) 0 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High, when the IR LED (Optional) is lit) |
| Super Dynamic | Dynamic Range 105 dB typ. |
| Image settings | Gain (AGC), White balance |
| Image compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Shutter speed | [2 Megapixel [16 : 9] (60 fps mode)] Off (1/60) to 1/10000 Other than [2 Megapixel [16 : 9](60 fps mode)] Off (1/30) to 1/10000 |
| Day/Night (ICR) | Off / On/ Auto1(Normal)/ Auto2(IR Light)/ Auto3(SCC) |
| IR LED Light (Optional) | Off/ Auto (High/ Mid/ Low) irradiation distance: 150 m (500 feet) |
| Image stabilization | On/ Off *Hybrid image stabilizer |
| Privacy zone | Gray/ Mosaic/ Off (up to 32 zones available) |
| Camera title on screen | Up to 20 characters (alphanumeric characters, marks) |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Lens | |
| Zoom Ratio | 30x/ 45x with HD extra optical zoom (at 1280 x 720) (Motorized zoom/ Auto Focus) |
| Digital (electronic) zoom | 24x |
| Focal length | 4.3 mm - 129 mm {3/16 inches - 5-3/32 inches} |
| Maximum Ratio Aperture | 1 : 1.6 (WIDE) - 1 : 4.7 (TELE) |
| Focus range | 2.0 m - ∞ |
| Aperture range | F1.6 (WIDE) - Close |
| Angular field of view | - [16 : 9 mode] Horizontal: 2.3° (TELE) – 64° (WIDE) Vertical: 1.3° (TELE) – 38° (WIDE) - [4 : 3 mode] Horizontal: 1.8° (TELE) – 50° (WIDE) Vertical: 1.3° (TELE) – 38° (WIDE) |
| Pan/tilt unit | |
| Panning Range | 360° endless |
| Panning Speed | - Manual: approx. 0.065°/s to 100°/s Preset: up to approx. 200°/s (Except when IR LED Unit is equipped, forward tilt mount, frozen.) |
| Tilting Range | Upright: –45° to +90° Forward tilt: –90° to +90° Hanging: –90° to +30° |
| Tilting Speed | Manual: approx. 0.065°/s to 100°/s Preset: up to approx. 200°/s (Except when IR LED Unit is equipped, forward tilt mount, frozen.) |
| Preset Positions | 256 positions |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ 360 map-shot/ Preset map-shot/ Patrol |
| Self Return | 10s to 60 min |
| Tilt flip | On/ Off |
| Map Shot | 360° map shot/ preset map shot |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/ JPEG (MJPEG) | - 2 Megapixel [16 : 9] (60 fps mode/30 fps mode) + H.264: Maximum 1,920 x 1080 + JPEG: Maximum 1,920 x 1080 - 1.3 Megapixel [4 : 3] (30 fps mode) + H.264: Maximum 1,280 x 960 + JPEG: Maximum 1,280 x 960 |
| Image compression method | - H.264 Transmission Mode : Constant bit rate/ Variable bit rate/ Frame rate priority/ Best effort/ Advanced VBR Transmission type: Unicast/ Multicast - JPEG Image Quality: 10 steps - Multiple streams individually configurable |
| Intelligent compression | Smart coding, VIQS (ROI) |
| Audio compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps, AAC-LC(High quality): 64 kbps/ 96 kbps/ 128 kbps |
| Protocol | - Pv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| Mobile terminal compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals |
| Environment | |
| Water and Dust Resistance | - Main body: IP66, IP67, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant - Waterproof RJ45 connector, Waterproof power connector, Waterproof I/O connector |
| Shock resistance | Compliant with IK10 (IEC 62262) |
| Vibration resistance | IEC60068-2-6 compliant |
| Salt damage resistance | ISO14993 compliant |
| Resistance to wind | Upright 216 km/h (135 mph) (Operation) / 288 km/h (180 mph) (non-destructive) Forward tilt 50 m (112 mph) (Operation) / 80 m (180 mph) (non-destructive) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassA, EN55024 |
| Power source | AC100 to 240 V, 50 Hz / 60 Hz Tested PoE Injector* (60 W) *with limitations |
| Operating environment | - Ambient operating temperature: AC100 to 240V: –50°C to +60°C {–58°F to 140°F} (Power On range: –30°C to +60°C {–22°F to 140°F}) - When using the tested PoE injector: –30°C to +60°C {–22°F to 140°F} - When using the tested PoE injector and IR LED unit at the same time: –20°C to +55°C {–4°F to 131°F}) *The upper limit value of ambient operating temperature indicates the use of WV-SUD638 (natural silver). In cases of products with other body colors, the upper limit value is +55°C {131°F}. *When WV-SUD6FRL1 (IR LED unit) is attached, the upper limit value of ambient operating temperature is +55 °C {131°F}. Ambient operating humidity: 10% to 100% |
| External I/O terminals | ALARM IN 1(DAY/NIGHT IN, Auto time adjustment), ALARM IN 2(ALARM OUT), ALARM IN 3(AUX OUT), Relay connection (x1 for each) |
| Line input | ø3.5 mm monaural mini jack Input impedance: Approx. 2 kΩ (unbalanced) For line input: Input level : Approx. –10 dBV |
| Audio output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) Using Amplifier built-in external speaker Output level: –20 dBV |
| Dimensions | 220 mm (W) x 450 mm (H) x 266 mm (D) {8-21/32 inches (W) x 1ft 5-23/32 inches (H) x 10-15/32 inches (D)} |
| Mass (approx.) | Approx. 8.5 kg {18.7 lbs} |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
