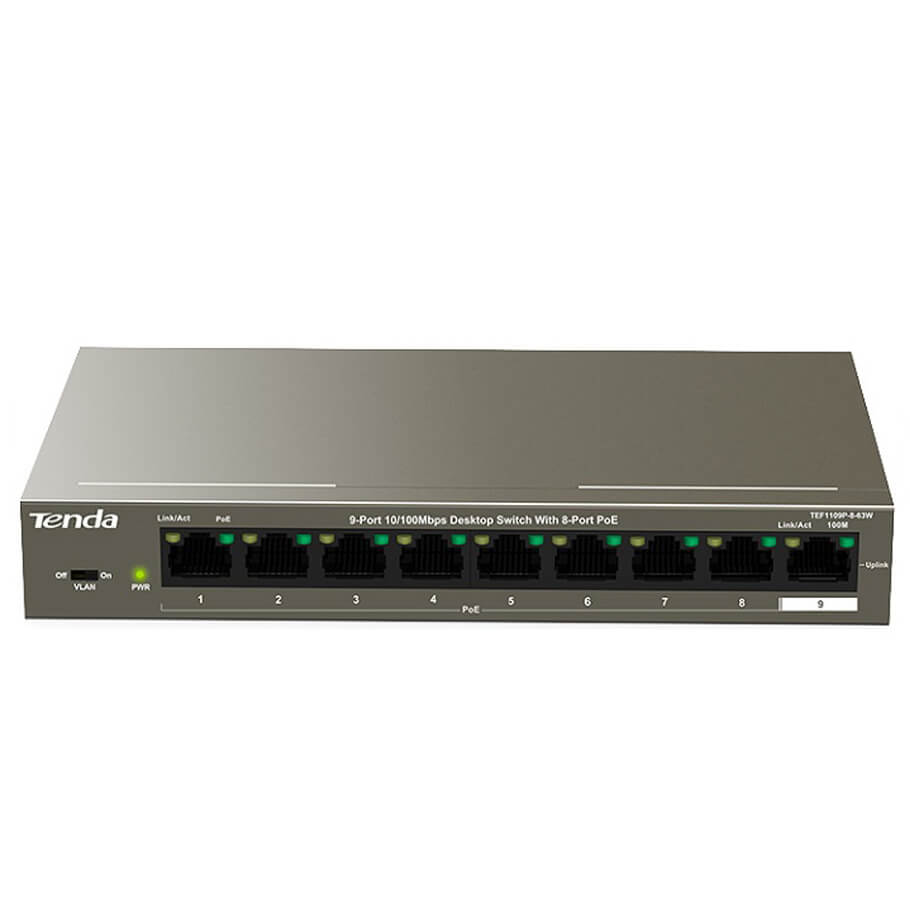

9-port 10/100Mbps with 8-port PoE Desktop Switch TENDA TEF1109P-8-63W
- 8 cổng PoE + 1 cổng Link.
- Hỗ trợ cung cấp nguồn cho cổng PoE lên 48V/63W.
- Chuẩn giao thức: IEEE 802.3, IEEE 802.3, IEEE 802.3, IEEE 802.3a, IEEE 802.3at.
- Công suất chuyển đổi: 1Gb.
- Tương thích với camera PoE J-Tech.
Đặc tính kỹ thuật
| Model | TEF1109P-8-63W |
| Hardware | |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| LED Indicator | 9 * Link/Ack LED indicators 1 * Power LED indicator |
| Interfaces | 8*10/100 Base-TX Ethernet ports (Data/Power) 1*10/100 Base-TX Ethernet ports (Data) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 177.5 x 104 x 26 mm |
| Level of protection | Lightning protection for ports: 6KV Lightning protection for power: 4KV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 1.8 Gbit/s |
| Packet forwarding rate | 1.34Mpps |
| Buffer | 1.25Mb |
| MAC address table | 4K |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 58W |
| Input voltage | 100－240V AC 50/60Hz 51V /1.25A DC (Power Adapter) |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting: non-support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Software | |
| Funtions | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively. |
- Bảo hành: 36 tháng.
