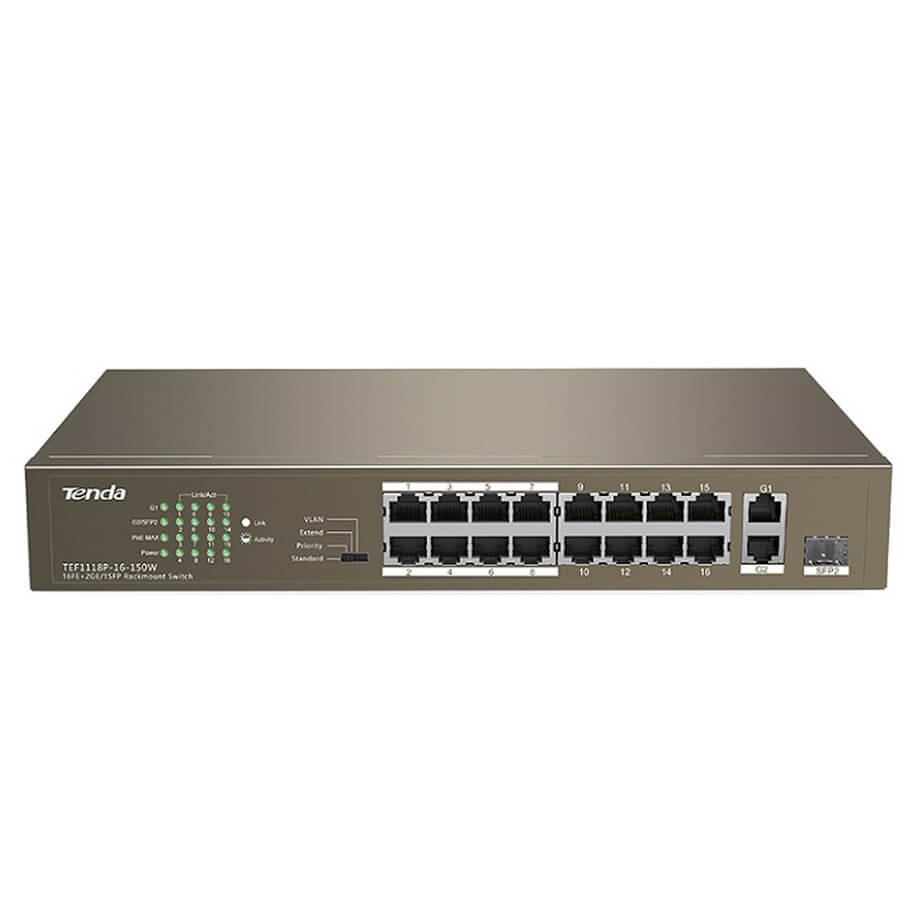

16-Port GE PoE Switch TENDA TEF1118P-16-150W
- 16 cổng PoE + 2 cổng Link.
- Hỗ trợ cung cấp nguồn cho cổng PoE lên 48V/63W/150W.
- Chuẩn giao thức: IEEE 802.3, IEEE 802.3, IEEE 802.3, IEEE 802.3a, IEEE 802.3at.
- Công suất chuyển đổi: 1Gb.
- Tương thích với camera PoE J-Tech.
Specifications
| Model | TEF1118P-16-150W |
| Network standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at |
| LED Indicator | 16 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED |
| Interfaces | 16 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100/1000 Base-T Ethernet ports (Data) 1 * 1000 Base-X SFP port (Combo) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 294 x 178.8 x 44 mm |
| Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 7.2 Gbps |
| Packet forwarding rate | 5.36 Mpps |
| Buffer | 1.25Mb |
| MAC address table | 4K |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 130W |
| Input voltage | 100-240V AC 50/60Hz |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting: support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Bảo hành: 36 tháng.
