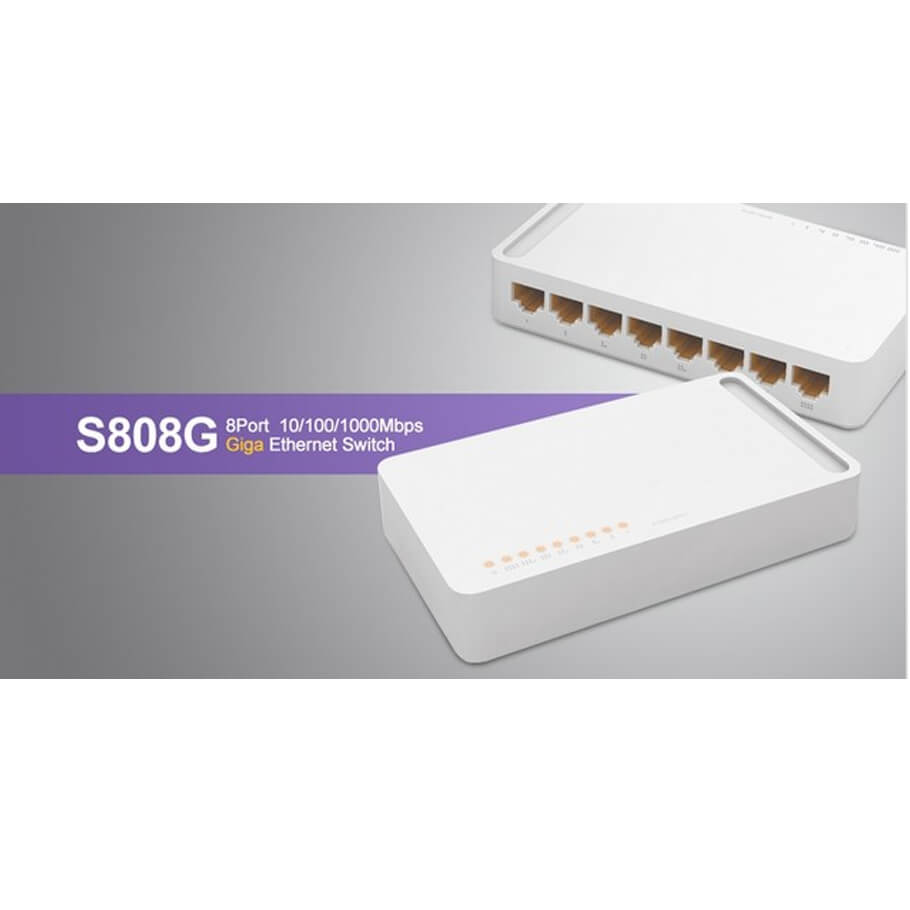

8 ports 10/100/1000Mbps Switch TOTOLINK S808G
- 8 ports 10/100/1000Mbps, Auto negotiation (MDI/MDIX)
- Wire-speed performance, desktop size
- Support per-port bandwidth control
- Support flow control, Nway auto-negotiation for any port
- MAC address auto-leading and auto AGING
- Store and forward
- Support PHY register read/write access
|
Model |
S808G - Gigabit Ethernet Switch 8port |
|
Standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab IEEE 802.3x |
|
Interface |
8 10/100/1000M Auto-Negotiation RJ45 Ports (Auto MDI/MDIX) |
|
MAC Address Learning |
Automatically learning, automatically update |
|
Network Media
|
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
|
Frame Filtering |
10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps: 1488000pps |
|
LED indicators |
Power, Link/Act |
|
Transfer Method |
Store-and-Forward |
|
MAC Address |
8K |
|
Backup Bandwidth |
16Gbps |
- Công nghệ Hàn Quốc, lắp ráp tại Trung Quốc.
- Bảo hành: 24 tháng.
