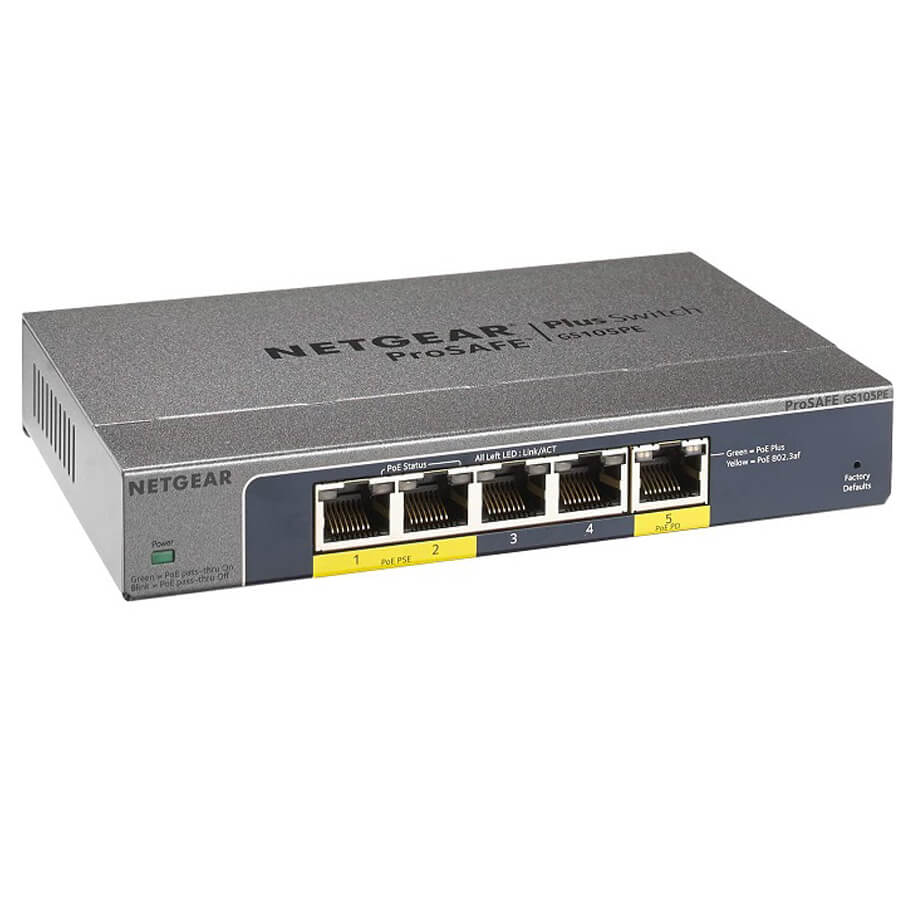

5-Port Gigabit Ethernet PD-Powered/PoE Pass-thru Plus Switch NETGEAR GS105PE
- 5 cổng RJ-45 10/100/1000 với 2 cổng PoE
- Băng thông: 10Gbps
- Bộ đệm/MAC/Jumbo: 128KB/2K/ Tối đa 9K
- VLAN/Multicast Group/LAGs: 64/128/Không
- Nguồn cấp: Không có nguồn cấp - phải được cấp điện từ thiết bị PoE khác
- Công suất PoE: PoE pass-thru: 19W với nguồn vào 802.3at/7.9W với nguồn vào 802.3af
- Quạt/Nguồn cấp/Kiểu dáng: Không quạt/Không/Có thể để bàn
- Quản lý: Công cụ PC Utility Tool và Giao diện Web GUI
Thông số kỹ thuật
| Model | GS105PE |
| Technical | |
| Form-Factor | Desktop |
| Ports | 5* 10/100/1000 Base-T RJ45 ports 2* PoE 802.3af Ports |
| Power Supply | NO POWER SUPPLY - must be powered from another PoE device |
| PoE budget | PoE pass-thru: 19W with 802.3at/7.9W with 802.3af input power |
| Max MAC entries | 2K |
| Buffer size | 128KB |
| Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes |
| Performance | |
| Forwarding modes | Store-and-forward |
| Forwarding modes | 10Gbps |
| Priority queuing | Weighted Round Robin (WRR) |
| Jumbo frame support | Up to 9K packet size |
| Acoustic noise | 0(dB) |
| L2 Features | |
| VLAN (Supported) | 64 |
| IEEE 802.1Q VLAN Tagging | Yes |
| Port-based VLAN | Yes |
| Link Aggregation/ Port Trunking | No |
| IGMP Snooping (v1, v2 and v3) | Yes |
| Block unknown Multicast | Yes |
| Supported Mulitcast groups | 128 |
| DHCP client | Yes |
| QoS | DHCP client, DSCP, IEEE 802.1p COS, Port-based VLAN, TOS, WRR (Weighted Round Robin), Strict Priority Queue Technology |
| Management | |
| System Password | Yes |
| Web browser-based management GUI | Yes |
| PC Utility | Yes |
| Port Mirroring | Yes |
| Multiple Language GUI | Yes: English, German, Japanese |
| Max number of source ports allowed (many to 1) | 4 |
| Many-to-One Port Mirroring | Yes |
| Cable Test utility | Yes |
| FW upgrade thru Plus Utility (TFTP) | Yes |
| Config download (to Switch) thru Plus Utility | Yes |
| Config upload (to Server) | Yes |
| Miscellaneous Features | |
| Loop Detection | Yes |
| DoS Prevention | Yes |
| Broadcast Storm Control | Yes |
| Energy Efficient Ethernet (EEE) | Yes |
| Physical | |
| Per port | Speed, Link, Activity |
| Per device | Power, Fan and PoE Power Status |
| Dimensions | 158 x 100 x 27 mm |
| Weight | 0.47kg |
| Fan | 0 |
| Operating temperature - Switch | 32° to 122°F (0° to 50°C) |
| Humidity | 90% maximum relative humidity, non-condensing |
- Bảo hành: 1 năm.
