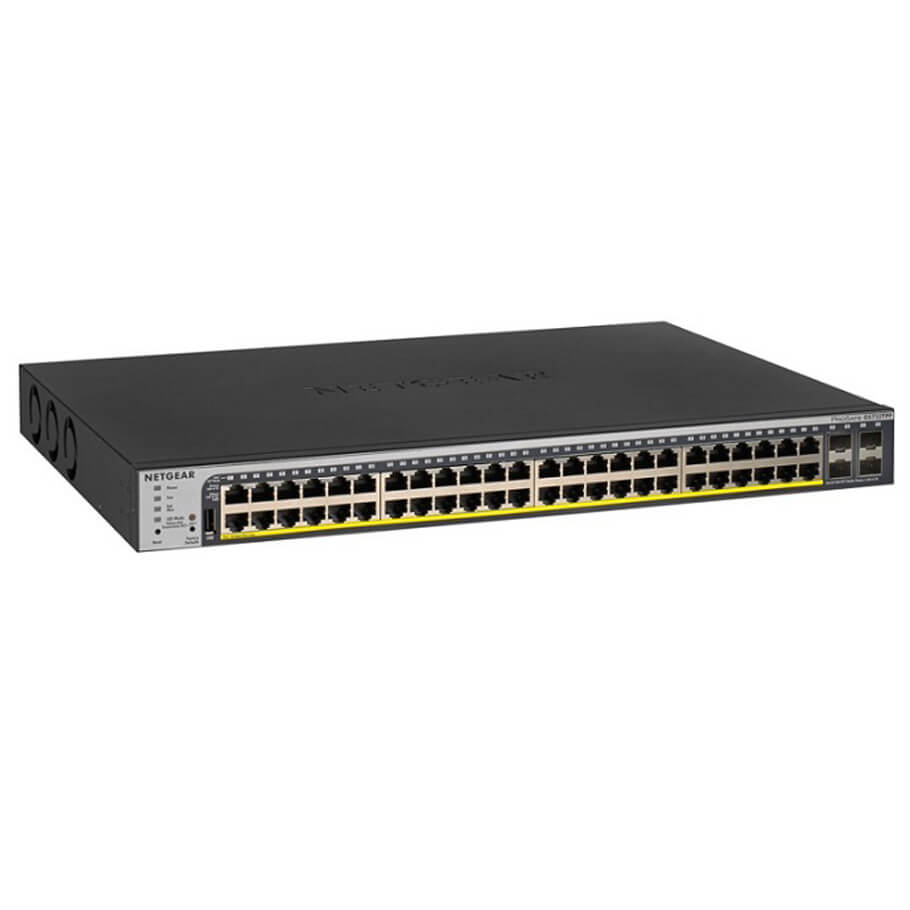

48-Port Gigabit Ethernet PoE+ Smart Managed Switch NETGEAR GS752TPP
- Switch thông minh quản lý Pro Hi-Power PoE+ 48 cổng Gigabit Ethernet, với 4 cổng SFP và quản lý qua đám mây.
- Bao gồm 48 cổng RJ45 10/100/1000 hỗ trợ PoE+ và 4 cổng SFP 1G.
- Quản lý: HTTP/HTTPS; SCC; RMON, SNMP; Đám mây.
- CPU/RAM/FLASH: MIPS-34Kc 700MHz đơn nhân / 128MB RAM DDR / 32MB FLASH.
- Băng thông: 104 Gbps.
- Bộ đệm gói/Quy tắc ACL/Jumbo frame: 1.5 MB/100 ACL chia sẻ/ Hỗ trợ kích thước gói lên đến 10K.
- Địa chỉ MAC/Bảng ARP/VLAN/Nhóm multicast: 16K/512/256/512.
- LACP: 26 LAG với tối đa 8 cổng trong mỗi LAG.
- Bộ tính năng: Layer 2+, Định tuyến tĩnh 32 IPv4 + 32 IPv6.
- Công suất PoE: 760W.
- Quạt: 3 quạt nội bộ, cố định.
- Nguồn cấp: 1 nguồn điện nội bộ, cố định.
- Kiểu dáng: Lắp rack 1U.
Thông số kỹ thuật
| Model | GS752TPP |
| 10M/100M/1G RJ-45 copper ports | 48 |
| PoE / PoE+ ports | 48 PoE+ (760W PoE budget) |
| 1G SFP (fiber) ports | 4 (dedicated) |
| USB port (for config file upload/backup & firmware updates) | Yes |
| Unified Network Management (Discovery, Setup, Monitoring, And Management) | |
| Discovery, setup, monitoring and management | NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser |
| Remote/Cloud management | Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal |
| Centralized network configuration (policies) | Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs |
| Device auto-join and configure (zero-touch provisioning) | Additional Insight Managed devices added to the network automatically inherit the network configuration |
| Multi-site, multi-network single pane-of-glass view | Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal |
| Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc |
Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard |
| Performance | |
| CPU | MIPS-34Kc 700MHz Single Core |
| Packet buffer memory | 1.5 MB |
| Forwarding modes | Store-and-forward |
| Bandwidth | 104 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC address database size (48-bit MAC addresses) | 16K |
| Multicast groups | 512 |
| Number of IPv4 static routes | 32 |
| Number of IPv6 static routes | 32 |
| Number of VLANs | 256 |
| Number of ARP cache entries | 512 ARP |
| Number of DHCP snooping bindings | 256 |
| Access Control Lists (ACLs) | 100 shared for MAC, IP and IPv6 ACLs (ingress) |
| Packet forwarding rate (64 byte packet size) | 77.38 Mpps |
| Jumbo frame support | Up to 10K packet size |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 39.74dBA |
| Others | |
| LEDs per port | Speed, Link, Activity; or PoE in different mode |
| LEDs Per device | Power, Fan, PoE Max |
| Dimensions | 440 x 310 x 43.2 mm |
| Weight | 5.03 kg |
| Fan | 3 |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| Storage Temperature | 20° to 70°C (– 4° to 158°F) |
- Bảo hành: 3 năm.
