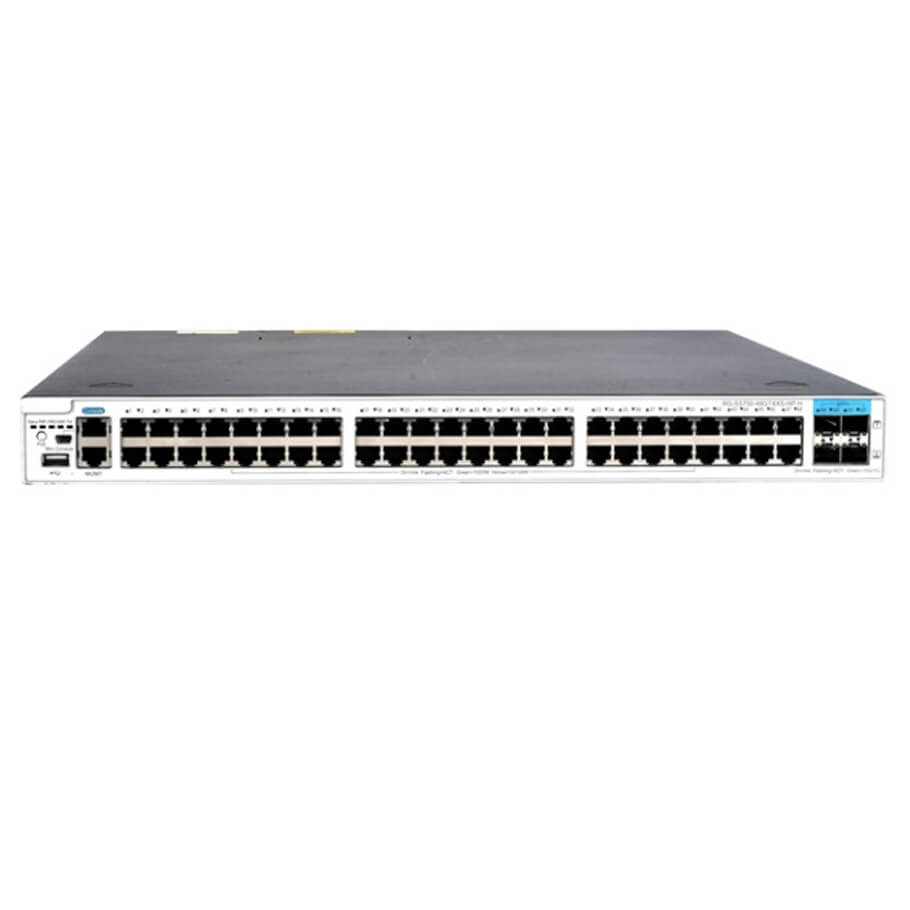

48-port GE RJ45+4-port 10GE SFP+ Switch Ruijie RG-S5750C-48GT4XS-H
Ruijie RG-S5750C-48GT4XS-H là thiết bị chuyển mạch Layer 3 thế hệ mới, mang đến hiệu năng vượt trội, khả năng mở rộng linh hoạt và độ tin cậy cao – đáp ứng hoàn hảo cho các hệ thống mạng doanh nghiệp, trường học, khu công nghiệp hoặc trung tâm dữ liệu.
Sản phẩm được trang bị 48 cổng Gigabit Ethernet cùng 4 cổng uplink 10G SFP+ tốc độ cao, giúp đảm bảo đường truyền ổn định, giảm độ trễ và hỗ trợ tối ưu cho nhu cầu truyền tải dữ liệu lớn như video, hội nghị trực tuyến, hoặc IoT.
Nhờ tích hợp hệ điều hành RGOS 11.X hiện đại, switch cung cấp khả năng quản trị dễ dàng, hỗ trợ SDN, MPLS, IPv6, cùng nhiều cơ chế bảo mật tiên tiến giúp hệ thống mạng luôn hoạt động an toàn, ổn định.
Tính năng nổi bật
Hiệu năng mạnh mẽ & khả năng mở rộng cao
- 48 cổng RJ45 Gigabit + 4 cổng 10G SFP+ cho kết nối linh hoạt, băng thông chuyển mạch đạt 256 Gbps.
- Hỗ trợ 64.000 địa chỉ MAC, phù hợp cho mạng doanh nghiệp và campus quy mô lớn.
- Hỗ trợ VSU (Virtual Switch Unit) – gộp tối đa 9 thiết bị thành một switch ảo duy nhất, đơn giản hóa quản trị và tăng tính dự phòng.
Bảo mật toàn diện
- Ngăn chặn tấn công DoS, giả mạo ARP/IP, kiểm soát truy cập cổng (Port Security).
- Hỗ trợ IPv4/IPv6 ACL, DHCP Snooping, IP/MAC Binding và NFPP bảo vệ bộ xử lý trung tâm trước các luồng dữ liệu bất thường.
- Quản lý an toàn qua SSH, SNMPv3, xác thực người dùng bằng RADIUS/TACACS+.
Độ tin cậy cao – vận hành ổn định
- Hỗ trợ nhiều cơ chế dự phòng như VRRP, ERPS (G.8032), REUP, đảm bảo mạng không gián đoạn.
- Cấu trúc nguồn kép dự phòng 1+1, quạt tản nhiệt thông minh, hỗ trợ thay nóng (hot-swappable).
- Khả năng phục hồi liên kết chỉ trong 50ms, đảm bảo kết nối liên tục.
Hỗ trợ SDN & IPv6 hiện đại
- Tương thích OpenFlow 1.3, dễ dàng triển khai mạng SDN thông minh.
- Hỗ trợ đầy đủ giao thức định tuyến IPv4/IPv6 (RIP, OSPF, BGP, IS-IS, VRF).
- Sẵn sàng cho môi trường mạng thế hệ mới.
Tiết kiệm năng lượng – thân thiện môi trường
- Thiết kế phần cứng tiết kiệm điện, quạt tự điều chỉnh tốc độ theo nhiệt độ môi trường.
- Tự động ngắt nguồn trên cổng không hoạt động, hỗ trợ EEE (Energy Efficient Ethernet).
- Giảm tiếng ồn, giảm tiêu thụ điện năng, thân thiện với không gian văn phòng.
Quản lý & bảo trì dễ dàng
- Hỗ trợ giao diện quản lý Web, CLI, Telnet, SNMP, Ruijie Cloud App.
- Dễ dàng sao lưu cấu hình qua cổng USB 2.0, hỗ trợ cập nhật nóng (Hot Patch).
Đặc tính kỹ thuật
| Model | RG-S5750C-48GT4XS-H |
| Fixed port | GE RJ45 port: 48 10GE SFP+ port: 4 |
| Flexible card | Card slot: 2 Card type: 1-port QSFP+ dedicated stack card 4-port 10GE SFP+ interface card |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 252Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Physical | Dimensions (WxDxH): 440 x 300 x 44 mm Unit weight: 4.2kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 140W - Idle power rating: 45W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1, IEC 60950-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 513460 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.
