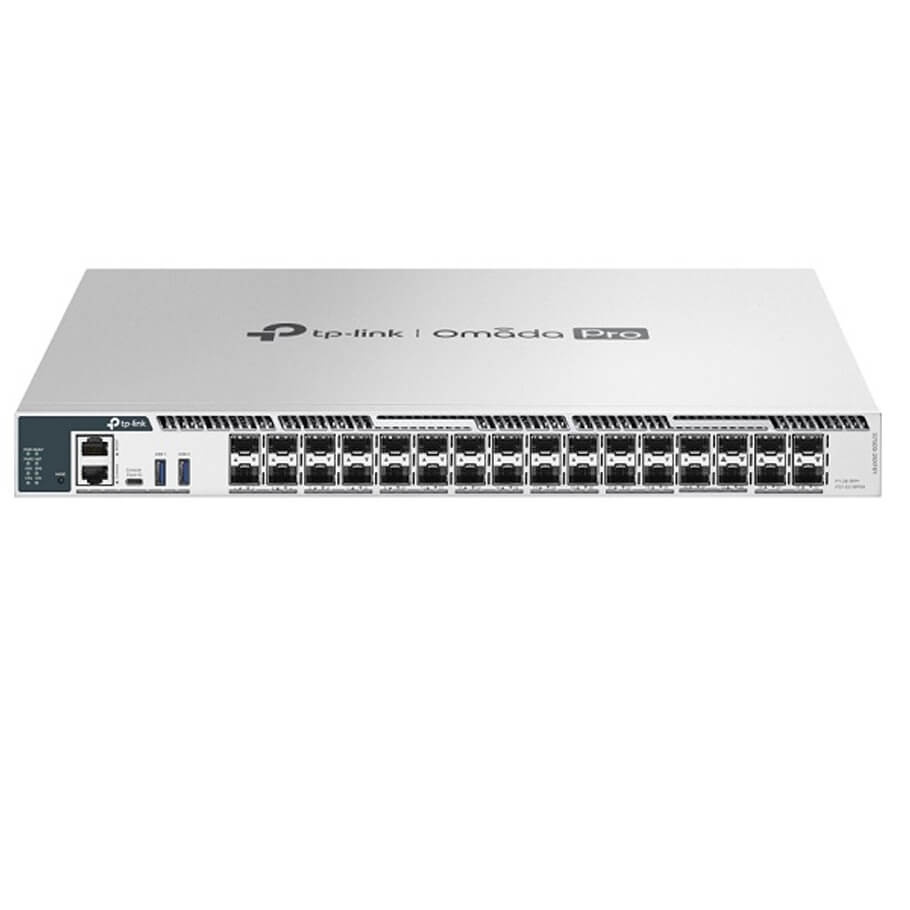

Omada Pro 26-Port 10G with 6 25G Slots Stackable L3 Managed Switch TP-LINK S7500-26XF6Y
Switch TP-Link Omada Pro S7500-26XF6Y – Giải pháp Aggregation 10G/25G hiệu năng cao cho doanh nghiệp
TP-Link Omada Pro S7500-26XF6Y là switch quản lý L3 stackable thuộc dòng Aggregation, được thiết kế để đáp ứng nhu cầu kết nối băng thông lớn tại trung tâm dữ liệu, hệ thống mạng doanh nghiệp và hạ tầng dịch vụ Internet. Với 26 cổng SFP+ 10G và 6 cổng uplink SFP28 25G, thiết bị mang lại khả năng truyền tải tốc độ cao, đồng thời hỗ trợ mở rộng hệ thống dễ dàng thông qua tính năng stacking vật lý với băng thông tới 300Gbps.
Sản phẩm nổi bật với công nghệ M-LAG, giúp tăng độ tin cậy từ cấp cổng tới cấp thiết bị, đảm bảo hoạt động ổn định ngay cả trong trường hợp xảy ra sự cố kết nối. Về phần mềm, switch hỗ trợ đầy đủ tính năng mạng L3 tiên tiến như OSPF, BGP, IS-IS, VRF, VRRP, PIM, cùng các cơ chế QoS và bảo mật toàn diện như Secure Boot, RADSEC, Port Security.
Được trang bị 2 nguồn dự phòng và 4 quạt thay thế nóng, Omada Pro S7500-26XF6Y đảm bảo hoạt động bền bỉ 24/7 với khả năng thay thế, bảo trì linh hoạt. Đặc biệt, thiết bị có thể quản lý tập trung qua nền tảng Omada Pro Controller (cloud, phần mềm, phần cứng) hoặc qua ứng dụng Omada, giúp quản trị viên dễ dàng triển khai, giám sát và cấu hình từ xa.
Tính năng nổi bật
- 26 cổng SFP+ 10G và 6 cổng SFP28 25G – tốc độ cao, phù hợp cho hệ thống Aggregation.
- Stacking vật lý – hỗ trợ tối đa 12 switch, băng thông stacking lên tới 300Gbps.
- Hiệu năng mạnh mẽ – switching capacity 820Gbps, forwarding rate 610.1Mpps, bảng MAC 128K.
- Công nghệ M-LAG – nâng cao độ tin cậy kết nối, chống gián đoạn dịch vụ.
- Độ sẵn sàng cao – 2 nguồn dự phòng thay thế nóng, 4 quạt tản nhiệt thay thế linh hoạt.
- Tính năng L3 nâng cao – OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/DM/SSM, ECMP, PBR.
- Bảo mật toàn diện – Secure Boot, 802.1X, Port Security, ARP Inspection, DoS Defense, RADSEC.
- Quản lý linh hoạt – Omada Pro Controller (cloud/hardware/software), Omada App, Web GUI, CLI, SNMP
Thông số kỹ thuật
| HARDWARE FEATURES | |
| Interface | • 26× 1/10Gbps SFP+ Slots • 6× 1/10/25Gbps SFP28 Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port |
| Fan Quantity | Four Field-replaceable and Hot-swappable Fans |
| Power Supply | Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz) |
| Dimensions (W x D x H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Mounting | Rackmountable |
| Max Power Consumption | 86.7 W (110 V/60 Hz) |
| PERFORMANCE | |
| Switching Capacity | 820 Gbps per Unit |
| Stacking | • Stacking Number: 12 (standalone mode) • Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: Up to 300 Gbps (6 stacking ports) |
| Packet Forwarding Rate | 610.1 Mpps |
| MAC Address Table | 128 K |
| Packet Buffer Memory | 8 MB |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) • WRED profile: 64 |
| L3 Features | • L3 Interface: 256 (IPv4,IPv6) • Static Route: 2,048 IPv4, 1,024 IPv6 • Host Route Table: Max 15,300 entries • IPv4 Network Router entries: 102,400 (shared with IPv6 Network Router entries) • IPv6 Network Router entries: 51,200 (shared with IPv4 Network Router entries) • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 1,024 static entries • Dynamic ARP: 24,576 dynamic entries • ND: 24576 • DHCP Server: Max 64 IP pool, Max 8,000 IP entries • DHCPv4/v6 Relay • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance • OSPFv2 • OSPFv3 • RIPv1/v2 • RIPng • IS-IS • BGP: Max 20 redistribute configs • PIM-SM/PIM-DM/PIM-SSM • IGMP: Version v1/v2/v3, Max 2,048 multicast groups • BFD: 16 template numbers, 8 session numbers • PBR • uRPF |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Table: 4K (IPv4, IPv6) - Fast Leave - Static Multicast Groups - Multicast Filtering - IGMP Snooping Authentication |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN |
| Security | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding • IPv6-MAC-Port Binding • DHCP Filter • Static/Dynamic Port Security • Broadcast/Multicast/Unknown-unicast Storm Control • 802.1X • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control • Secure boot • RADSEC |
| MANAGEMENT | |
| Omada App | Yes, through Omada Pro Controller |
| Centralized Management | Omada Pro Cloud-Based Controller Omada Pro Hardware Controller Omada Pro Software Controller |
| Cloud Access | Yes, through Omada Pro Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log |
- Bảo hành: 5 năm.
