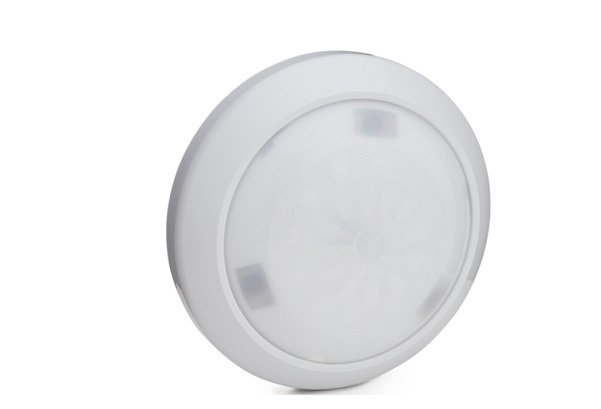

Ceiling Mount Motion Sensor HONEYWELL IS-280CM
Ceiling Mount Motion Sensor HONEYWELL IS-280CM
- The IS-280CM is a commercial ceiling mounted passive infrared motion sensor that provides a 360° detection pattern in a sleek, lowprofi le design housing. Optimum performance is achieved by using an advanced microprocessor and 100% tested pyroelectric element.
Features
- Reliable Performance: By combining an advanced microprocessor and a 100% tested pyroelectric element, the IS-280CM provides the installer with outstanding detection and robust false alarm immunity.
- Fast and Simple Installation: Three highly visible walk test LEDs provide easy identification of range from any distance or angle within the detection pattern. Markings on the terminal strip make wiring a snap.
- False Alarm Prevention Features: Provides protection against false alarms due to RF signals, electrostatic discharge and electrical overstress. The bug guard protects the pyroelectric element against insects and unwanted drafts.
- Sleek, Low-Profile Design: The slim white housing blends well with any décor. The IS-280CM also has wiring knockouts for either surface or recessed wire runs and can be mounted on a single-gang electrical box.
- Effective in Hot or Cold Environments: The IS-280CM operates effectively in harsh environments (14° F to 122° F / -10° C to 5° C)
- Alarm Memory and First to Latch: Provides alarm history when needed
Specification
- Pattern Coverage: 360˚
- Range: 46 feet (14m)
- PIR Fields of View: 50.
- Alarm Relay: Form A, SPST, 30VDC/ 500mA
- Power Requirements: 9 to 30VDC l7mA.
- Operating Temperatures: 14°Fto 122° F (-10°C to +50°C), 95% Humidity (non-condensing).
- Dimensions (Dia x H): 125 x 38 mm.
- Bảo hành: 12 tháng.
