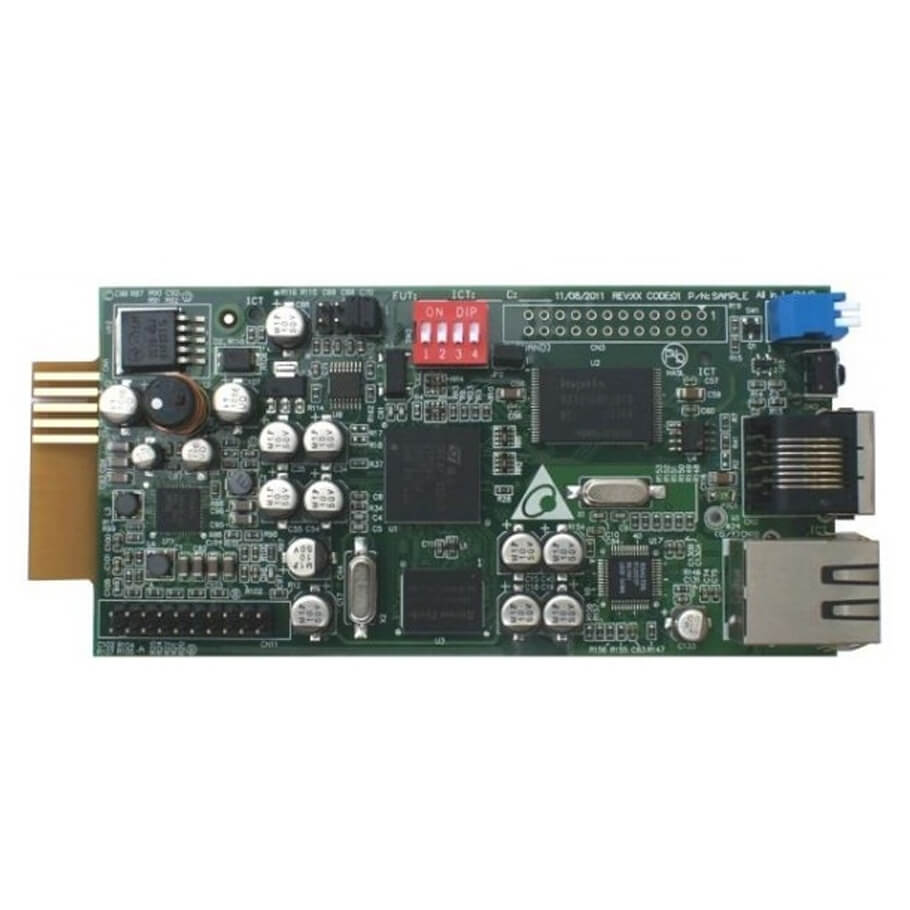

SNMP Card All-in-One for UPS Delta 3915100975-S35

SNMP Card All in One for UPS DELTA N 6k-10k

Part Number: 3915100975-S35

- SNMP card is additional communication interface between UPS and the network. Card allows UPS remote control and monitoring trough network and can be install into all type of UPS with Smart slot, except N-series and R-series.

- Applicable to UPS: N-series, except N 1kVA, R-series (External Box for SNMP required).

Features

Supported network protocols

- SNMPv1 and SNMPv3 protocol, accepts NMS monitoring as well as actively sends Trap packets to target hosts.

- HTTP/HTTPS - monitor and set up through network browser with built-in web server.

- Telnet, SSH, FTP, SFTP, BOOTP, DHCP, SMTP, SNTP and RADIUS, Syslog.

- MIB - supports RFC1628 and custom defined UPSv4 and UPSv5 MIB.

Management

- Regular power on and off with possibility to set UPS on and off time.

- Regular testing - battery discharge test to ensure the battery is in good condition.

- Smart power off will send power off signal to connected host actively if the host computer has the InsightPower Client or SNMP power off proxy installed.

- Optional environment sensor can integrate ambient temperature and humidity for total cabinet monitoring.

Diagnosis

- Event log - keep date, time, and event sequence in event log file.

- History records - Keep date, time, and UPS parameter data. Can be exported into XLS file for further processing.

Reactions to events

- UPS shutdown - Define delay time for UPS power off to avoid deep discharge.

- Email - send email notification to predefined recipients in case of power event.

- Sản xuất tại Trung Quốc.

- Bảo hành: 1 năm.
