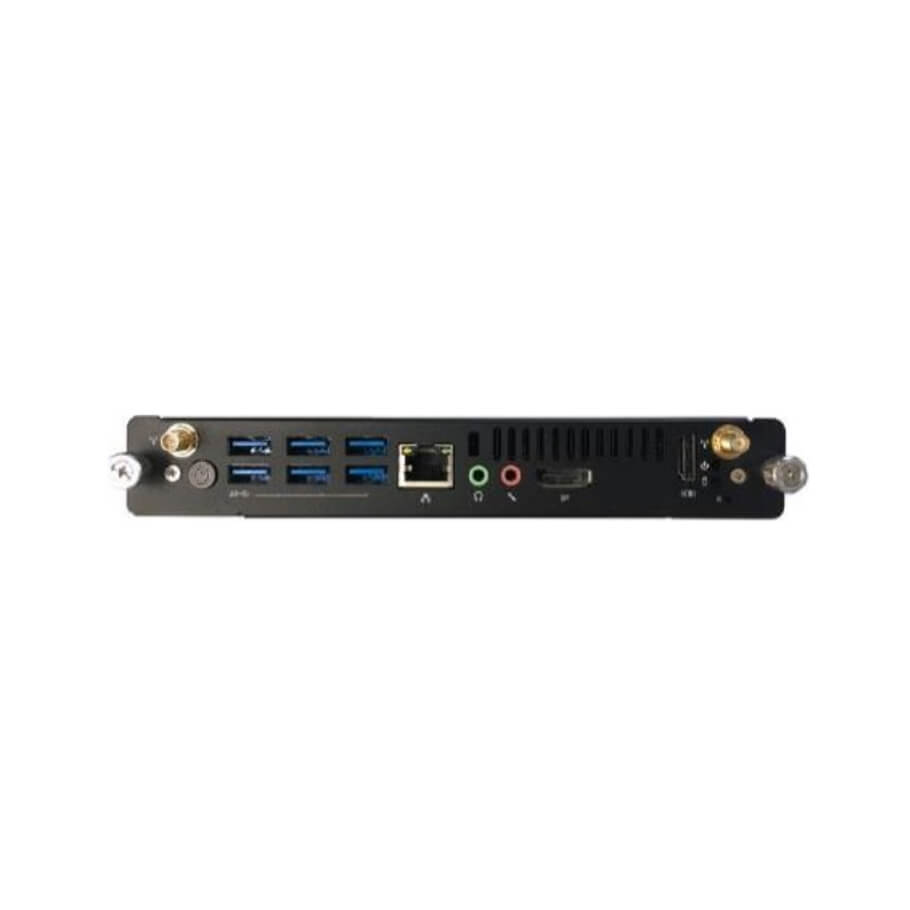

OPS Modular HIKVISION DS-D51S5/8S
- 6th-generation Intel desktop Core i5 processor.
- Intel HD Graphics 500 integrated graphics card with H.265/4K resolution.
- MSATA system disk to quick startup.
- 3 × USB 3.0 interfaces, 3 × USB 2.0 interfaces, 1 × HDMI interface, and 1 × DP interface.
- Single/dual antenna 802.11a/b/g/n Wi-Fi with high speed wireless transmission.
- Intelligent conference system based on Intel/Core/vPro processor technology and Intel/Unite software.
Specification
| Mainboard | |
| NIC | Integrated 10/100/1000 Mbps Adaption × 1 |
| Wi-Fi | IEEE 802.11 ac |
| Memory | 8GB |
| SSD | 128GB |
| Bluetooth | Bluetooth 4.0 |
| CPU | |
| Processor | Intel Core i5 6400 |
| Main Frequency | 2.7GHz |
| Interface | |
| USB 3.0 | USB 3.0 × 3, USB 2.0 × 3 |
| HDMI | 1 (support 4K, 2K resolution) |
| DP | 1 (support 4K, 2K resolution) |
| Network Interface (RJ 45) | 1 |
| General | |
| Dimensions (W×D×H) | 180 mm × 194 mm × 42 mm |
| Net Weight | 1.24kg |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Working Temperature | 0°C to 40°C (32°F to 104°F) |
| Working and Storage Humidity | 10%-90% RH |
| Power | |
| Power Type | Built-in power supply |
| Power Supply | 12 to 19 VDC |
| Standby Power | 0.5 W |
| Maximum Power | 95 W |
- Bảo hành: 24 tháng.
