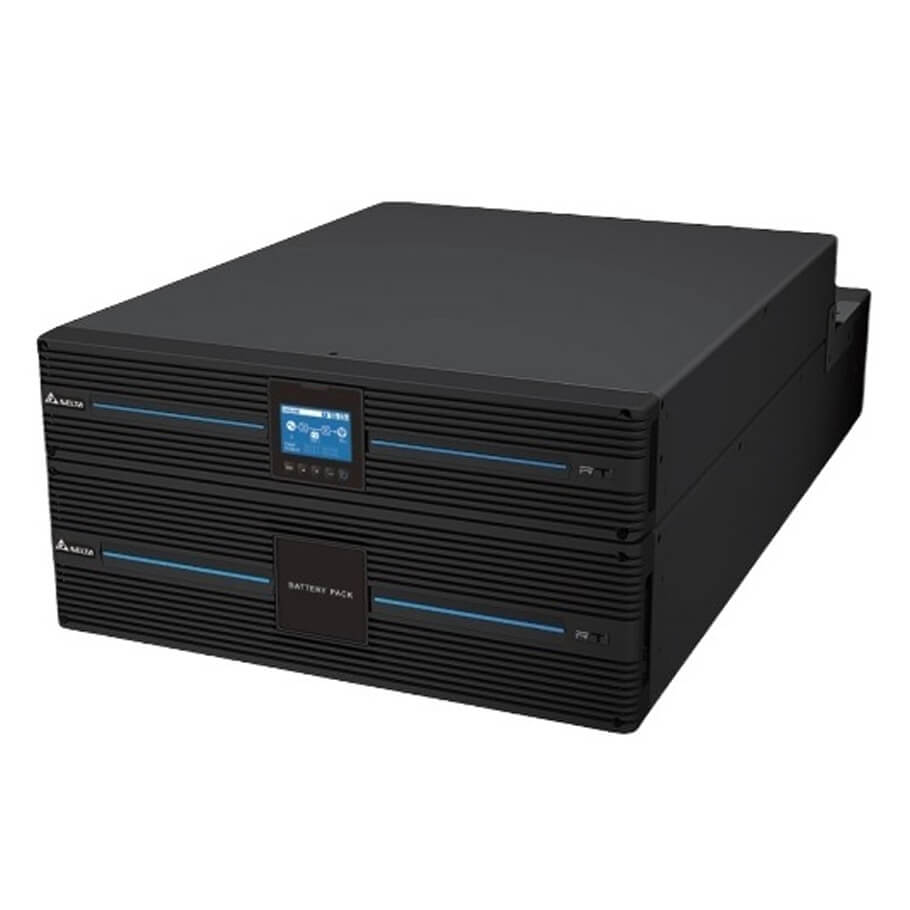

Nguồn lưu điện UPS DELTA Amplon RT-10K3P (UPS103R6RT2N035)
Part Number: UPS103R6RT2N035
- Power Rating: 10kVA/10kW.
- Voltage Range Input: 138~485Vac (Three phase, 4-wire + G); 138~305Vac with linear de-rating 40~100%.
- Voltage Output: 380/400/415Vac (Three phase), or 220/230/240Vac (Single phase).
- Overload Capability Output: ≤ 105%: continuous; 106~125%: 5min;126~150%: 1min.; > 150%: 500ms.
- Efficiency
+ AC-AC: Up to 96%;
+ ECO Mode: Up to 99%.
- Dimensions (Wx Dx H): 440 x 649 x 88.2 mm.
- Weight: 16.6kg.
Đặc tính kỹ thuật
| Model | RT-10K3P |
| RT-10K3P | 10kVA/10kW |
| Input | Voltage Range: 138~485 Vac (three phase, 4-wire +G) 138~305Vac with linear de-rating 40~100% Frequency: 40~70Hz Power Factor: >0.99 (full load) iTHD: <3% Input connection: Input terminal x 1, Bypass Input terminal x 1) |
| Output | Power Factor: Unity Voltage: 380/400/415Vac Frequency: 50/60Hz± 0.05Hz Voltage Harmonic Distortion: ≤2% (linear load) Overload Capability: ≤105%: continuous; 106~125%: 2min; 126~150%: 30 sec; >150%: 200ms |
| Receptacle | Terminal block x 1 |
| Efficiency | AC-AC: Up to 96% ECO Mode: 99% |
| Battery Voltage | Standard Runtime Model: 144Vdc Extended Runtime Model: 192~264Vdc |
| Charger Current | Up to 8A |
| Typical Backup Time | Depending on different configurations required by customers |
| Audible Noise | 54dB |
| Display | Graphical and multi-lingual LCD |
| Communication Interfaces | MINI Slot x 1, Parallel x 2, USB Port x 1, RS232 Port x 1, RS485 Port x 1, REPO/RÔ Port x 1, Dry Contact x 4 |
| Conformance | CE, UL/cUL, RCM, TISI, BIS, KC, BSMI |
| Environment | Operating Temperature: 0 ~ 50°C Relative Humidity: 5 ~ 95% (non-condensing) |
| Dimensions (Wx Dx H) | 440 x 649 x 88.2 mm |
| Weight | 16.6kg |
- Bảo hành: 3 năm.
