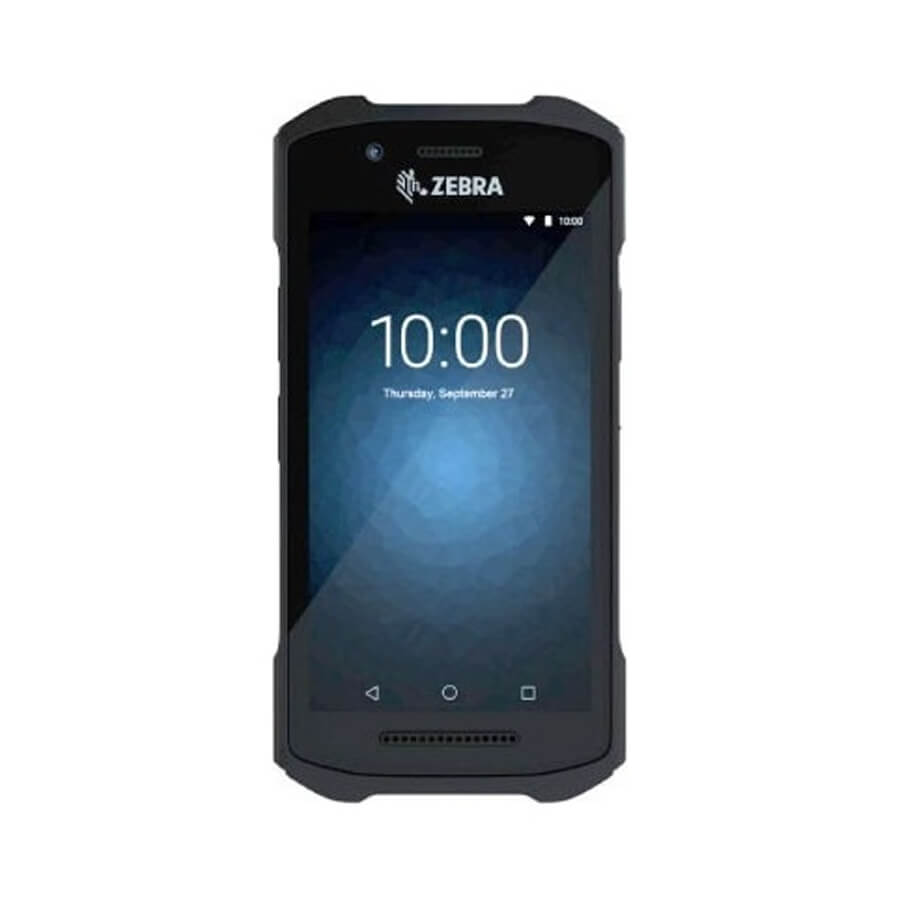

Máy quét mã vạch kiểm kho Zebra TC21
- Đọc mã 1D + 2D.
- Bàn phím: On-screen keypad.
- Màn hình: 5-inch color HD (1280x720), LED backlight; Corning® Gorilla® Glass.
- Bộ xử lý: Qualcomm SnapdragonTM 660 octa-core, 1.8 GHz.
- Hệ điều hành: Android 10.
- Bộ nhớ: 4GB RAM/ 64GB Flash memory; 3GB RAM/ 32GB Flash memory.
- Hỗ trợ thẻ nhớ mở rộng microSD 128GB.
- Pin: 3100mAh.
- Cho phép rơi từ 1.2m
- Tiêu chuẩn chống bụi nước: IP65.
- Giao tiếp: USB, Bluetooth, Wifi, NFC.
- Ứng dụng: Logistics, giao nhận, xuất khẩu hàng hoá...
Đặc tính kỹ thuật
| Physical Characteristics | |
| Dimensions (L x W x D) | With standard battery: 158 mm x 79 mm x 13.7 mm With extended battery: 158 mm x 79 mm x 17.3 mm |
| Weight | 8.32 oz./236 g with standard battery; 269 g with extended battery |
| Display | 5.0 in. color HD (1280 x 720); LED backlight; Corning® Gorilla® Glass |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Capacitive Touch Panel; multi-touch |
| Power | Removable/serviceable rechargeable Li-Ion Standard battery: ≥ 3300 mAh/12.54 Wh Extended battery: 5260 mAh/20.25 Wh |
| Expansion Slot | One 128 GB micro SD slot |
| SIM | 1 Nano SIM slot |
| Network Connections | WLAN, WPAN, USB 2.0 hi-speed (host and Client) |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad |
| Audio | Speaker - 1 Watt Voice support (Internal speaker/receiver and microphones) |
| Buttons | Scan on each side; volume up/down; power; push-to-talk (PTT) keys |
| Performance Characteristics | |
| CPU | Qualcomm SnapdragonTM 660 octa-core, 1.8 GHz |
| Operating System | Android 10 with built in support for a future Android release |
| Memory | 4 GB RAM/64 GB Flash memory; 3 GB RAM/32 GB Flash memory |
| User Environment | |
| Operating Temp. | 14°F to 122°F / -10°C to 50°C |
| Storage Temp. | -30°F to 158°F / -30°C to 70°C |
| Humidity | 5% - 95% non condensing |
| Drop Spec. | 4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature |
| Tumble Spec. | 300 tumbles, 1.6 ft./0.5 m |
| Sealing | IP67 |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge |
| Interactive Sensor Technology (IST) | |
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
| Proximity Sensor | Automatically detects when the user places the handset against head during a phone call to disable display output and touch input |
| Data Capture | |
| Scanning | 1D/2D imager |
| Camera | Rear camera 13MP; optional front camera 5MP |
| NFC | Integrated; MIFARE, ISO 14443 A&B, FeliCa, ISO 15693 and NFC Forum supported cards; read range up to 50 mm |
| Wireless WAN Data and Voice Communications | |
| Voice Communications | Optional Push-to-Talk (PTT) Express Mobility DNA software application for instant PTT walkie-talkie style calls inside the four walls. Optional Workforce Connect Push-to-Talk (PTT) Pro² Mobility DNA easy-to-deploy, cost-effective subscription-based software application that provides instant PTT walkie-talkie style calls inside and outside the four walls via an easy-to-deploy subscription service. Optional Workforce Connect Voice³ to turn TC21 devices into fully-featured PBX handsets with a custom interface that makes it easy to execute even the most complex telephony features - eliminating the need to purchase and manage additional voice-enabled devices. |
| Wireless LAN | |
| WLAN Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi certified; IPv4, IPv6, 1x1 MU-MIMO |
| Data Rates | 2.4 GHz: 802.11b/g/n - 20MHz, 40MHz - up to 150 Mbps 5 GHz: 802.11a/g/n/ac - 20MHz, 40MHz, 80MHz - up to 433 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA Enterprise 192-bit Mode (GCMP-256) - EAP-TLS; Enhanced Open (OWE) |
| Certifications | 802.11a/b/g/n; WPA; WPA2; WPA3 |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r (Over-The-Air); OKC |
| Wireless PAN | |
| Bluetooth | Bluetooth 5.0 BLE, Class 2 |
- Bảo hành: 12 tháng.
