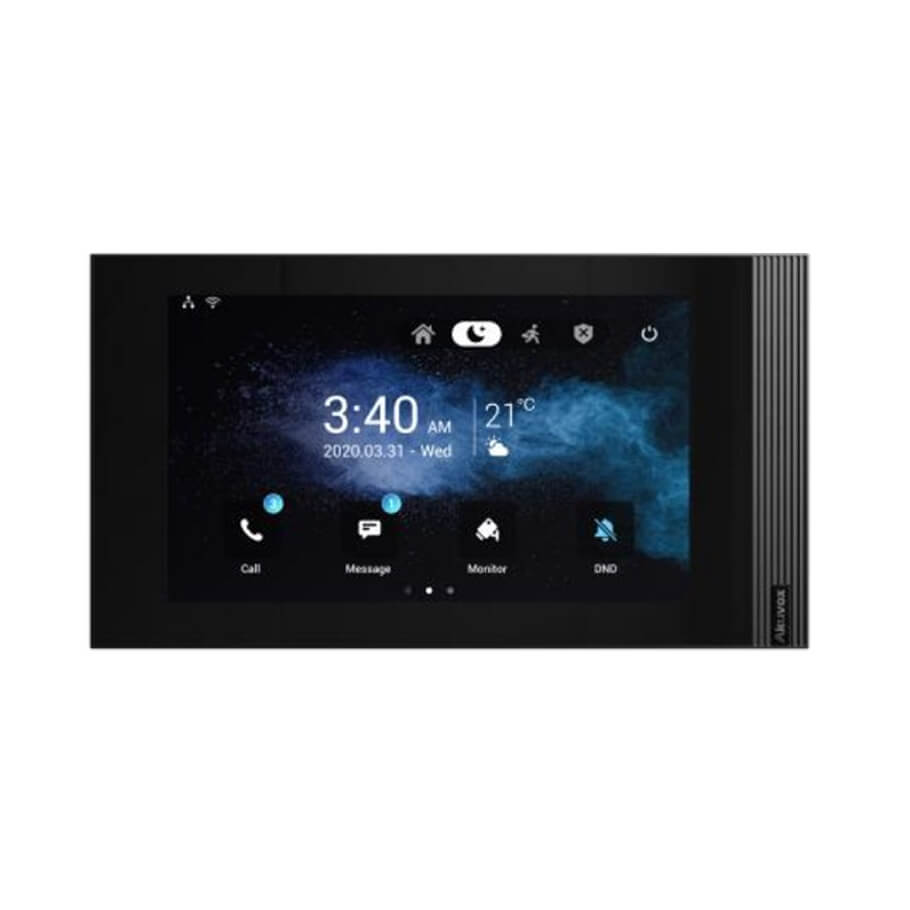

Màn hình chuông cửa AKUVOX S562
- Màn hình chuông cửa AKUVOX S562 với hệ điều hành Linux cung cấp khả năng liên lạc và video với điện thoại cửa thông qua giao thức SIP 2.0. Được thiết kế với màn hình 7-inch cảm ứng điện dung.
Features
- Ultra-clear, stylish appearance;
- 7-inch capacitive touch screen with energy saving mode;
- Two-way audio communication with other units in the network;
- Complies with SIP standard for easy integration in every SIP capable PBXes;
- Powered by PoE or external source;
- Support US or European electrical wall box mounting.
Thông số kỹ thuật
| Physical & Power | - Front panel: Plastic - RAM / ROM: 128MB / 128MB - Display: 7 Inch TFT LCD 1024x600 resolurion - Screen: 7 Inch capacitive touch screen - RS485 port: Support - Relay out: 1 - Bell in: 1 - I/O: 8 - Microphone: -42dB - Speaker: 4Ω / 2W - Ethernet ports: 2xRJ45, 10/100Mbps adaptive - 802.3af Power-over-Ethernet - 12V DC connector (if not using PoE) - Installation: Wall-mounted & Desktop - Dimension: 216.4x118.8x21.7mm - Working Humidity: 10~90% - Working Temperature: -10°C ~ +45°C - Storage Temperature: -20°C ~ +70°C |
| Touch Screen Display | - Display Mode: Normally white, Transmissive - LCD Size: 7inch (Diagonal) - Resolution: 1024x600 - Contrast ratio: 600:1 - Luminance: 250 cd/m² - Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower - Touch Screen: Projected capacitive |
| Audio | - SIP v1 (RFC2543), SIP v2 (RFC3261) - Narrowband audio codec: G.711a, G.711μ, G.729 - Broadband audio codec: G.722 - DTMF: Out-of-band DTMF (RFC2833), SIP Info - Echo Cancellation |
| Video | - Streaming formats: H.264 |
| Networking | - Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | - Auto-Provisioning - Web management portal - Web-based packet dump - Configuration backup / restore - Firmware upgrade - System logs (include door access logs) |
| Application Scenario | - Villas - Apartment complexes - Home automation systems - Modern interiors |
- Bảo hành: 27 tháng.
