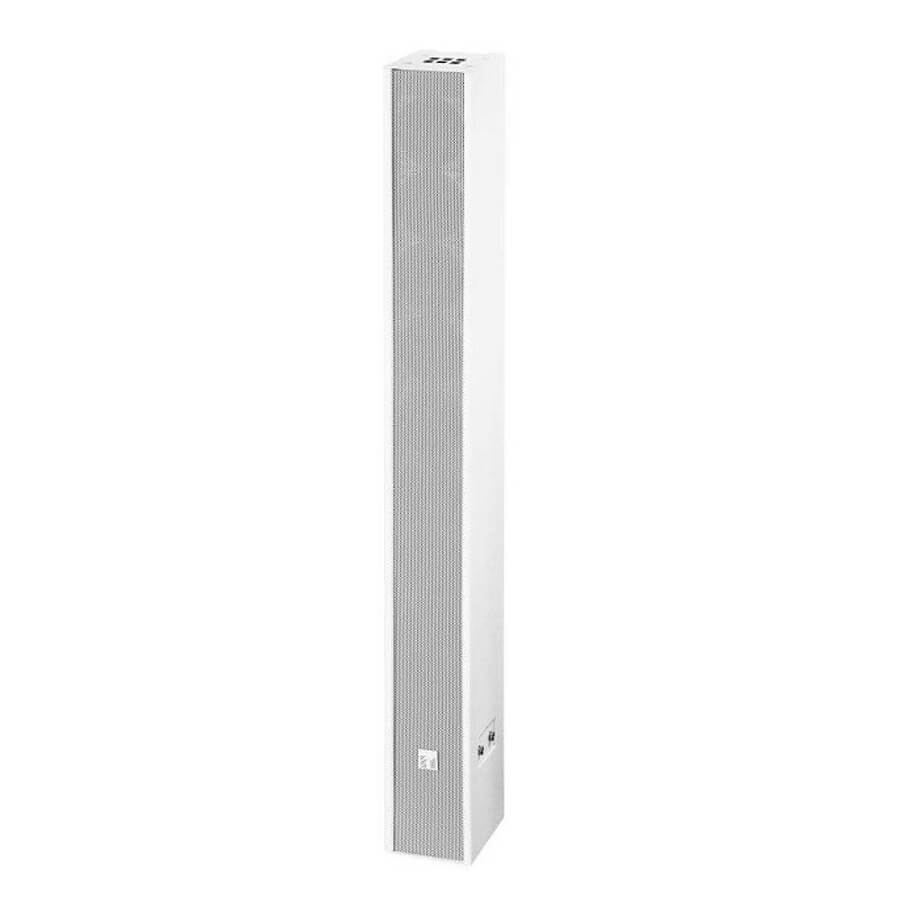

Loa Array 240W TOA TZ-S240W-AS
- Featuring slim construction, the TZ-S240W-AS is a 2-way array speaker containing 32 speaker elements. The sound source speaker elements are vertically arranged in close proximity to each other, and form a continuous linear sound source, achieving uniform sound pressure with less attenuation due to distance.
- The TZ-S240W speaker is of a special design which is ideal for long distance sound transmission applications.
Specifications
| Model | TZ-S240W |
| Enclosure | Bass-reflex type |
| Max Input Power | Continuous : 240 W Program : 480 W |
| Impedance | 8Ω |
| Sensitivity | 94 dB (1W, 1m) |
| Frequency Response | 95 - 20,000 Hz |
| Crossover Frequency | 2.5 kHz |
| Directivity | Horizontal: 100° Vertical: 5° |
| Speaker Component | Low Frequency: 10cm (4”) cone-type woofer x 8 High Frequency: 2.5cm (1”) balanced dome tweeter x 24 |
| Input Connector | M4 screw terminal x 2 |
| Operating Temperature | -10ºC ~ 50ºC |
| Finish | Enclosure: MDF, white paint Net Grille: Punched steel plate, white paint |
| Dimensions | 160 x 950 x 262 mm |
| Weight | 17kg |
- Sản xuất tại Indonesia.
- Bảo hành: 12 tháng.
