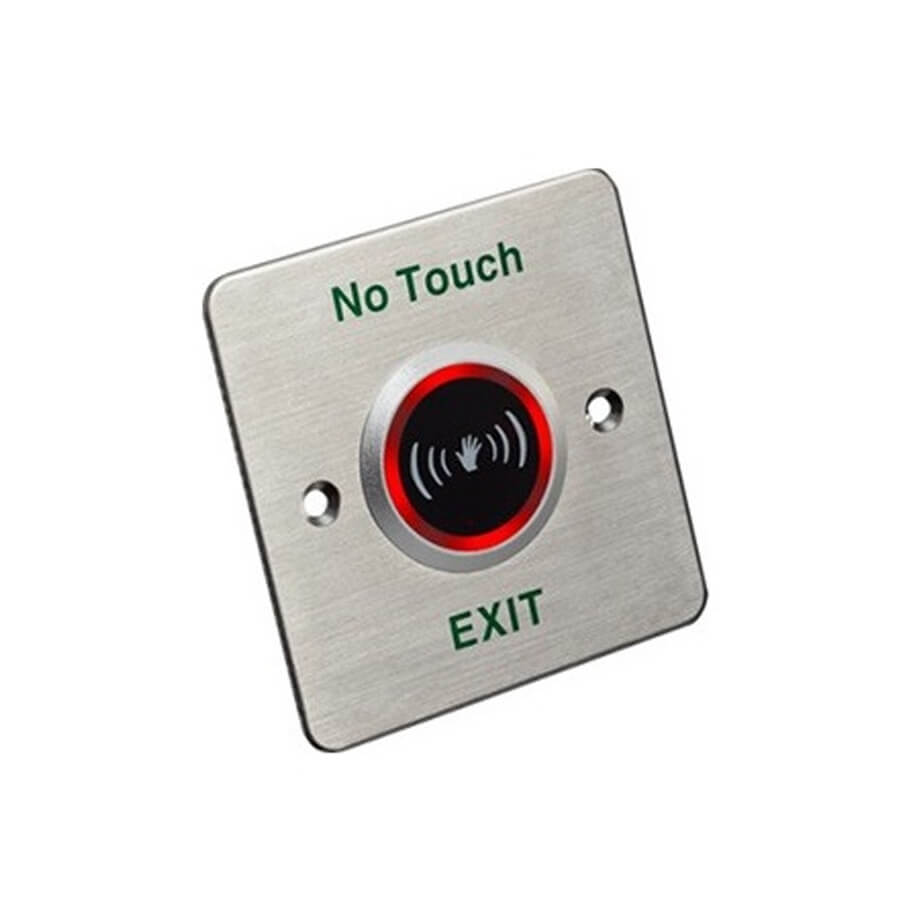

Exit Button HIKVISION DS-K7P03 (SH-K8P03)
- Nút exit: Mặt hợp kim nhôm, có đèn chỉ thị.
- Kích thước (Dài x Rộng x Cao ): 86 × 86 × 25 mm.
Thông số kỹ thuật
| Output Contact | NO/NC/COM Contact |
| Aging Test | already passed 1 million times aging test |
| Working Current | 20mA(standby), 50mA(working current) |
| Power Supply | 12VDC |
| Suitable Doors | all kinds of narrow doorframes |
| Maximum Inductive Distance | 40 to 100mm(1.57 to 3.94') (adjustable) |
| LED Indicator | white/green/red LED, indicates power-off/active/Standby |
| Panel | aluminum panel |
| Working Humidity | 0 to 95% (relative humidity) |
| Working Temperature | -20°C to +50°C (-4°F to 122°F) |
| Dimensions (L×W×H) | 86mm × 86mm × 25.7mm (3.39inch × 3.39inch × 1.01inch) |
| Weight | 0.15kg (0.33lb) |
