0916 287 068 Digital Time Switches THEBEN TR 611 top3 RC

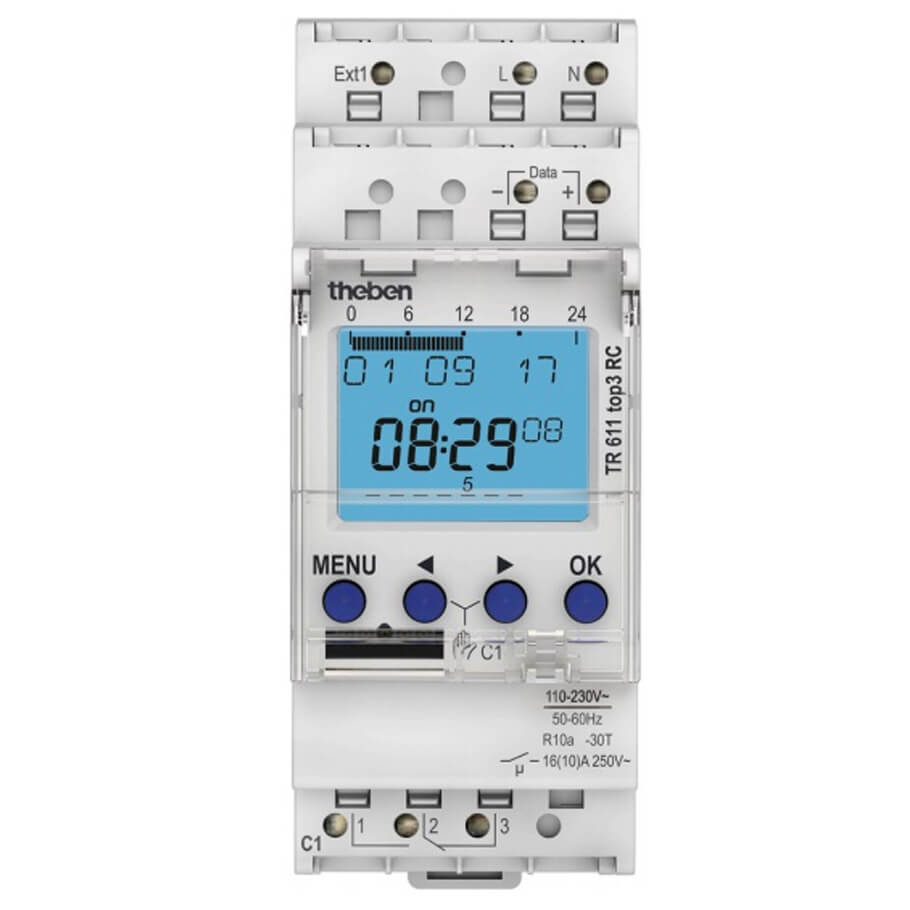

Digital Time Switches THEBEN TR 611 top3 RC
- Part Number: 6110330.
- Digital time switch with weekly program.
- Time synchronisation option via connection of an external DCF or GPS antenna.
- Additional power unit required for GPS if only one device is connected to the antenna.
- 1 channel.
- Programming by app possible.
- Safe transfer via optional Bluetooth Low Energy OBELISK top3.
- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch.
- 100% compatible with top2 (When transferring the switching programs via OBELISK to the PC, the OBELISK software as of V3.8.3.4 must be installed).
- 3 special programs (small annual program).
- External inputs.
- Connectable sensors (external selector switch, sequence timer).
- Connectable switches (ON or OFF permanent switching).
- DuoFix spring terminals:
+ For 2 conductors each.
+ Wire or strand (with or without wire end sleeve).
+ Wire diameter: 0.5 - 2.5 mm².
+ Button for releasing plug-in connection.
- Text-oriented user guidance in display:
+ Preset date and time.
+ Fully operable without mains connection.
- 84 memory locations.
- Interface for OBELISK top2 memory card (PC programming):
+ 2. insertable switching program.
+ Copying programs.
+ Storing programs.
- 10 year power reserve (lithium battery).
- Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices).
- ON-OFF switching times.
- Pulse program.
- Cycle program.
- Switching preselection.
- Permanent switching ON/OFF.
- Timer countdown.
- Integrated operating hour counter:
+ Reset option.
+ Service function for monitoring maintenance intervals.
- Holiday program.
- 2 random programs.
- Display back light (can be turned off).
- Permanent switching ON/OFF.
- PIN coding.
- Automatic summer/winter time changeover:
+ can be deactivated.
+ Date rule options are already stored for Europe, the USA and other countries.
+ Own date rule options or changeover around set dates are available.
Đặc tính kỹ thuật
| Model | TR 611 top3 RC |
| Operating voltage | 110 – 230 VAC |
| Frequency | 50 – 60 Hz |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of contact | Changeover contact |
| Switching output | Phase-independent |
| Opening width | < 3 mm |
| Program | Weekly program |
| Program functions | ON-OFF, Pulse, Cycle |
| Number of channels | 1 |
| External inputs | 1 |
| Number of memory locations | 84 |
| Power reserve | 10 years |
| Switching capacity at 250 V AC, cos φ=1 | 16 A |
| Switching capacity at 250 V AC, cos φ=0,6 | 10 A |
| Incandescent/halogen lamp load 230V | 2600 W |
| Energy saving lamps 230 V | 1100 W |
| LED lamp < 2 W | 50 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Inrush current | max. 800 A / 200 µs |
| Switching capacity min. | ca. 10 mA |
| Shortest switching times | 1s |
| Time accuracy at 25 °C | typical ± 0,25 s/day (quartz) or DCF77/GPS |
| Time basis | Quartz/DCF77/GPS |
| Stand-by consumption | ~0,75 W |
| Type of connection | DuoFix spring terminals |
| Keyboard | 4 touch button |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection clas | II according to EN 60 730- |
| Ambient temperature | -25 °C … +55 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
