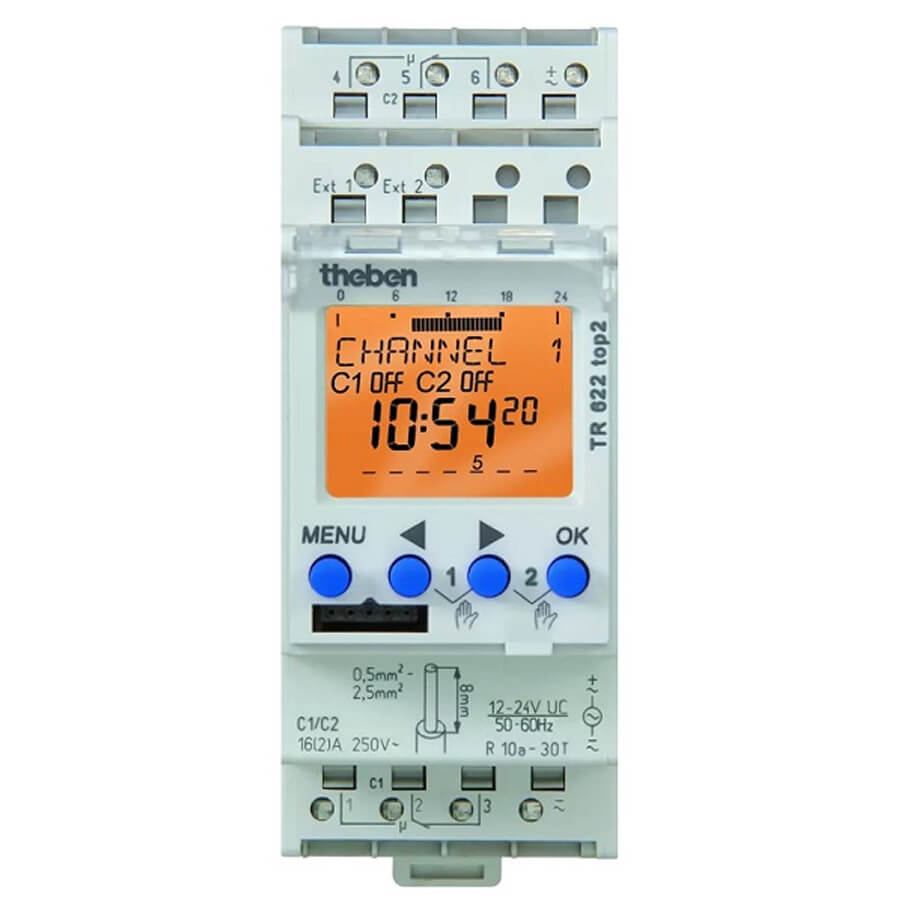

Công tắc hẹn giờ kỹ thuật số THEBEN TR 622 top2 24V
- Digital time switch with weekly program
- DuoFix spring terminals
- For 2 conductors each
- Wire or strand (with or without wire end sleeve)
- Wire diameter: 0.5 - 2.5 mm²
- Button for releasing plug-in connection
- Text-oriented user guidance in display
- Preset date and time
- fully operable without mains connection
- 84 memory locations
Specifications
| Operating voltage | 12 - 24 V UC |
| Frequency | 50 - 60 Hz |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of contact | Two-way changeover contact |
| Switching output | Phase-independent |
| Opening width | < 3 mm |
| Program | Weekly program |
| Program functions | ON-OFF, Pulse, Cycle |
| Number of channels | 2 |
| External inputs | 2 |
| Number of memory locations | 84 |
| Power reserve | 10 years |
| Switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 2:00 AM |
| Incandescent/halogen lamp load | 1400 W |
| Energy saving lamps | 30 W |
| LED lamp < 2 W | 6 W |
| LED lamp 2-8 W | 20 W |
| LED lamp > 8 W | 25 W |
| Switching capacity min. | ca. 10 mA |
| Shortest switching times | 1 s |
| Time accuracy at 25 °C | typical ± 0,25 s/day (quartz) |
| Time basis | Quartz |
| Stand-by consumption | ~0.3 W |
| Memory card supplied | Yes |
| Type of connection | DuoFix spring terminals |
| Display | LCD |
| Keyboards | 4 touch buttons |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Voltage | 12-24 V UC |
| Ambient temperature | -30°C ... 55°C |
- Bảo hành: 12 tháng.
Giá: 5.083.000 VND
