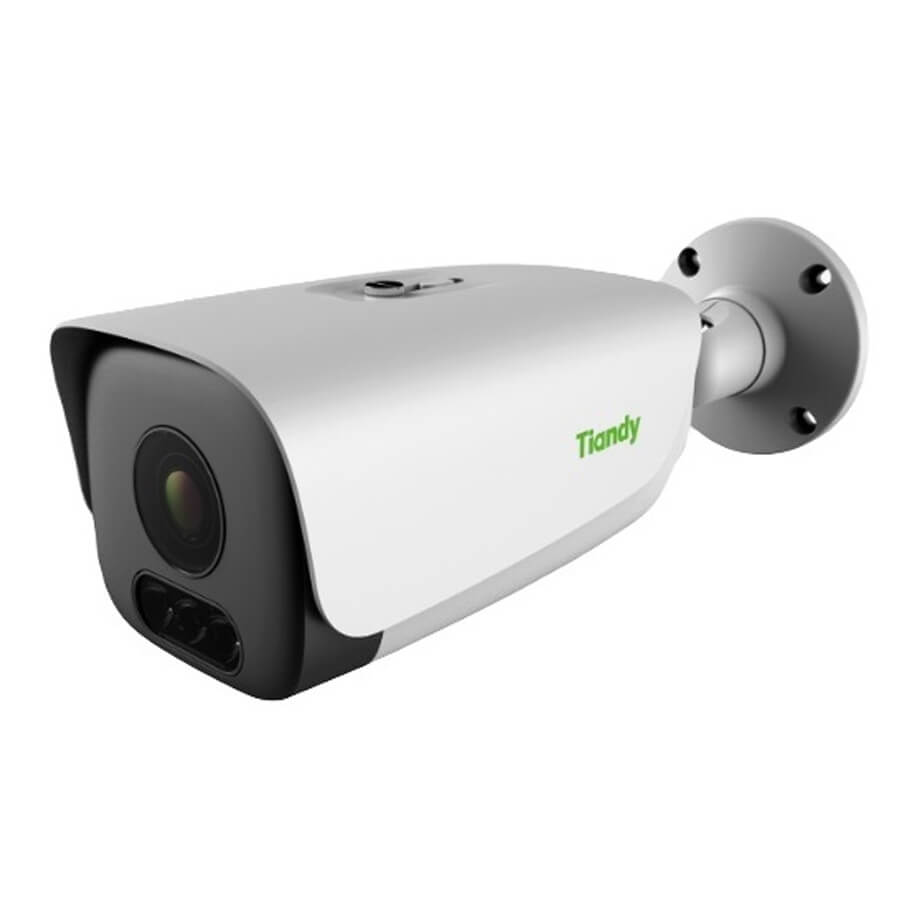

Camera IP hồng ngoại 5.0 Megapixel TIANDY TC-C35LP(I8W/A/E/Y/M/H/2.7-13.5mm/V4.0)
- Cảm biến hình ảnh: 1/1.8 inch CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264/M-JPEG.
- Ống kính: 2.7-13.5mm/F1.2~F2.2, motozied lens.
- Độ nhạy sáng: Color: 0.0004Lux@ (F1.2, ACG ON), B/W: 0Lux with IR.
- Tầm quan sát hồng ngoại: 80m.
- Tích hợp micro trên camera.
- Hỗ trợ thẻ nhớ tối đa 512GB.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ 2 cổng vào và 1 cổng ra alarm.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC, HLC.
- Chức năng chống ngược sáng thực WDR 120dB.
- Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: DC 12V, PoE.
- Vỏ kim loại.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/1.8 inch CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.0004Lux@ (F1.2, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, roate 0~360° |
| Lens | |
| Lens Type | Motorized |
| Focus | 2.7-13.5mm |
| Lens Mount | Φ14 |
| Aperture | F1.2~F2.2, DC |
| FOV | Horizontal field of view: 106.9°~48.7° |
| Illuminator | |
| IR LEDs | 4 |
| IR Range | Up to 80m |
| Wavelength | 850nm |
| White/Warmlight LEDs | 3 |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 3072×1728 |
| Main Stream | PAL: 25fps (3072×1728, 2560×1440, 2304×1296) 50fps (1920×1080, 1280×720) |
| NTSC: 30fps (3072×1728,2560×1440, 2304×1296), 60fps (1920×1080, 1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×480, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×480, 352×240) | |
| Third Stream | PAL: 25fps(1920x1080, 1280x720, 704x576, 704x288, 640×480, 352x288) |
| NTSC: 30fps(1920x1080, 1280x720, 704x480, 704x240, 640×480, 352x240) | |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
| ROI | Support 7 fixed regions of coding |
| OSD | 16×16, 24×24, 32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, Video Abnormal, Audio Abnormal, Heatmap |
| Early Warning(EW) | Yes |
| Network | |
| ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, Multicast |
| System Compatibility | ONVIF (PROFILE S/T/G/M), SDK, Milestone, CGI, P2P |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive Plus |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio | 1/1, Mic in |
| Alarm | 2/1 |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| General | |
| Web Client Language | 17 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese, Ukrainian, German |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±20%/PoE |
| Power Consumption | MAX: 8.5W (12V) MAX: 10W (PoE) |
| Protection | IP67 |
| Dimensions | 333×114.2×106.6mm |
| Weight | 1.48kg |
