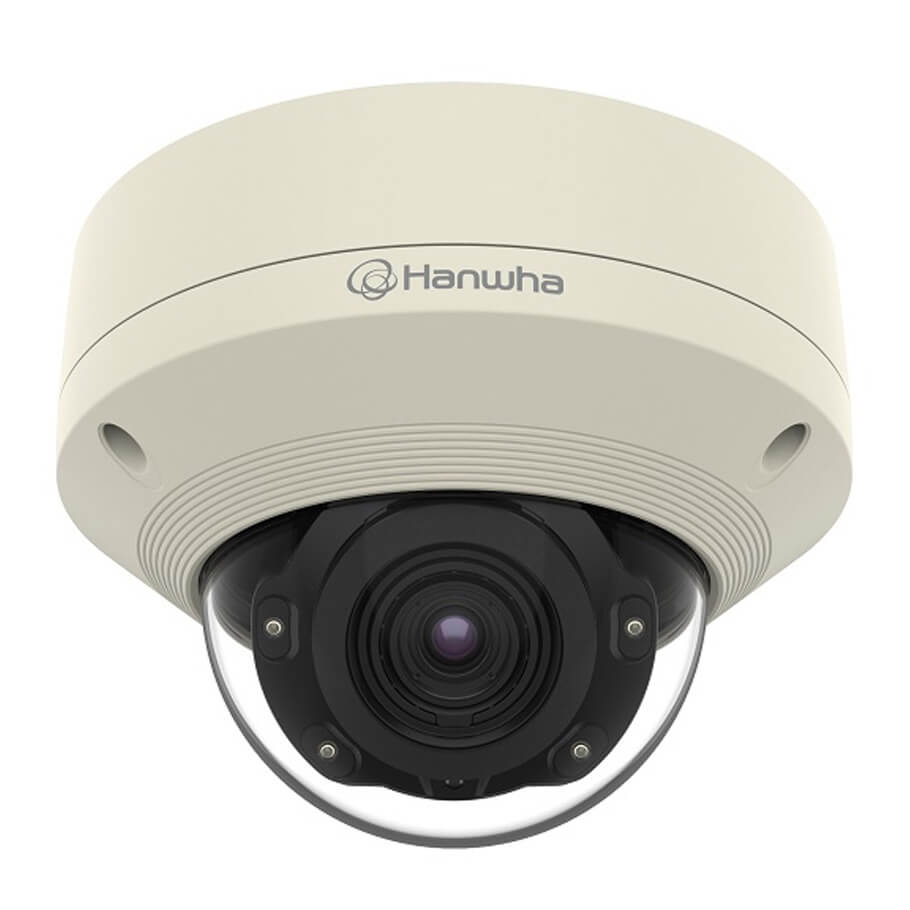

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Vision XNV-8080R
- Cảm biến hình ảnh: 1/1.8 CMOS.
- Chuẩn nén hình ảnh: H.264, H.265, MJPEG.
- Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 512GB.
- Độ phân giải camera ip: 5.0 Megapixel (2560 x 1920).
- Độ nhạy sáng: 0.07 Lux (Color), 0 Lux (B/W) (IR Led Bật).
- Ống kính thay đổi: 3.9 ~ 9.4mm.
- Tầm quan sát hồng ngoại: 50 mét.
- Chức năng quan sát sát Ngày & Đêm (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Hỗ trợ LDC.
- Chức năng giảm tiếng ồn kỹ thuật số SSNRV.
- Tiêu chuẩn chống thấm nước và bụi: IP67, IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
Đặc tính kỹ thuật
| VIDEO | |
| Imaging Device | 1/1.8 inch CMOS |
| Total Pixels | 3096 (H) x 2094 (V) |
| Effective Pixels | 2616 (H) x 1976 (V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.07 Lux (F1.3, 1 / 30sec), B/W : 0 Lux (IR LED On) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite, 720x480 (N), 720x576 (P), for installation |
| USB : Micro USB type B, 1280x720, for installation | |
| LENS | |
| Focal Length (Zoom Ratio) | 3.9~9.4mm (2.4x) motorized varifocal |
| Max. Aperture Ratio | F1.3 |
| Angular Field of View | H : 92.1˚ ~ 38.7˚ / V : 67.2˚ ~ 29.0˚ / D : 119.9˚ ~ 48.6˚ |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
| Lens / Mount Type | DC Auto Iris, P-iris/ Board-in type |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| OPERATIONAL | |
| Viewable Length | 50m (131.23ft) |
| Camera Title | Off / On (Displayed up to 85 characters) |
| - W/W : English / Numeric / Special characters | |
| - China : English / Numeric / Special / Chinese characters | |
| - Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRⅤ (2D + 3D Noise Filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8 point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) |
| - Color : Grey / Green / Red / Blue / Black / White | |
| - Mosaic | |
| Gain Control | Off / Low / Middle / High / Manual |
| Contrast | Level adjustment |
| LDC | On / Off (5 levels with Min / Max) |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Flip / Mirror | Off / On, Hallway view : 90˚ / 270˚ |
| Video Analytics | Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio Detection, Defocus detection, Digital auto tracking - with metadata |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP, E-mail, Notification via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, DPTZ preset |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 2560 x 1920, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, |
| 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, | |
| 320 x 240 | |
| Max. Framerate | H.265 / H.264: Max. 30fps at all resolutions / Motion JPEG: Max. 30fps |
| Smart Codec | Manual mode (area-based : 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.265 / H.264 / MJPEG : Target Bitrate Level Control |
| Bitrate Control Method | H.265 / H.264 : CBR OR VBR, MJPEG : VBR |
| Streaming Capability | Multiple Streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in), Supply voltage : 2.5VDC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out, Max. output level: 1 Vrms |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz | |
| Audio Communication | Bi-directional audio (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address | |
| Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC 2slot (up to 512 GB) |
| - Continuous recording (1st slot to 2nd slot) | |
| - Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded. | |
| NAS (Network Attached Storage) | |
| Local PC for instant recording | |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Supported OS | Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12. Non-plugin WebViewer |
| Supported Browser | Google Chrome, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari 10 (Mac OS X only) |
| Plug-in Webviewer | |
| Supported Browser: MS Explorer 11, Apple Safari (Mac OS X only) | |
| Central Management | SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | IP66, NEMA 4X |
| Vandal Resistance | IK10+ |
| ELECTRICAL | |
| Input Voltage / Current | 24VAC ± 10%, 12VDC ± 10%, PoE (IEEE802.3af) |
| Power Consumption | Max. 11.5W (12VDC), Max. 12.95W (PoE), Max. 14W (24VAC) |
| MECHANICAL | |
| Color / Material | Ivory / Aluminum |
| Dimensions | Ø160.0 x 118.5mm |
| Weight | 1.01kg |
- Bảo hành: 24 tháng.
