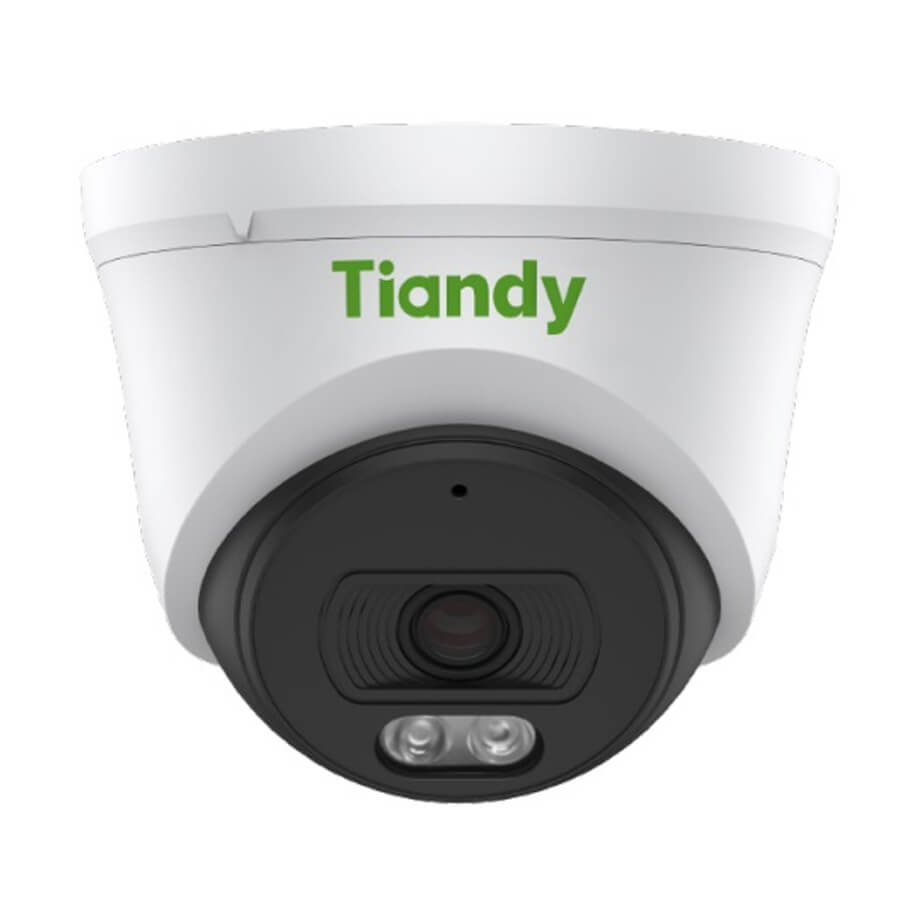

Camera IP Dome hồng ngoại 4.0 Megapixel TIANDY TC-C34XN (I3/Y/2.8mm/V5.0)
- Cảm biến hình ảnh: 1/3” CMOS.
- Độ phân giải: 2560x1440@20fps.
- Chuẩn nén video: S+265+/H265/H264, hỗ trợ 2 luồng video.
- Ống kính cố định: 2.8mm/F1.6, Fixed Iris.
- Tầm quan sát hồng ngoại: 30 mét.
- Độ nhạy sáng: 0.02Lux.
- Tích hợp micro trên camera.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC.
- Chức năng chống ngược sáng Digital WDR.
- Chuẩn ONVIF quốc tế.
- Vật liệu vỏ: kim loại + nhựa.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/3'' CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
| Angle Adjustment | pan 0~340°, tilt 0~75°, roate 0~360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 2.8mm |
| Lens Mount | M12 |
| Aperture | F2.0, Fixed |
| FOV | Horizontal field of view: 92.8°(2.8mm) Vertical field of view: 52.2°(2.8mm) Diagonal field of view: 104.8°(2.8mm) |
| Illuminator | |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U/ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 2560x1440 |
| Main Stream | PAL: 20fps(2560x1440,2304x1296,1920x1080,1280x720) NTSC:20fps(2560x1440,2304x1296,1920x1080,1280x720) |
| Sub Stream | PAL: 20fps(704x576,704x288,352x288,640x360） NTSC: 20fps(704x480,704x240,352x240,640x360） |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| OSD | 16×16, 32×32, 48×48, 64×64,adaptable size, Letters Such as Week, Date, Time, Total 1 Regions |
| Privacy Mask | Yes, 4 regions |
| Feature | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Network | |
| Protocols | HTTP,TCP/IP,UDP,ICMP,DHCP,DNS,NTP,IPv4,Telnet |
| System Compatibility | ONVIF (PROFILE S/T), SDK, CGI |
| Remote Connection | ≤2 |
| Client | Easy7, EasyLive Plus |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | Mic in |
| General | |
| Web Client Language | 12 languages English, Arabic, Italian, Spanish, Japanese, Vietnamese, Thai, Turkish, Russian, Polish, Portuguese, French |
| Operating Conditions | -30℃～60℃, 0～95% RH |
| Dimensions | 117mm(D)×96mm(H) |
| Weight | 0.24kg |
