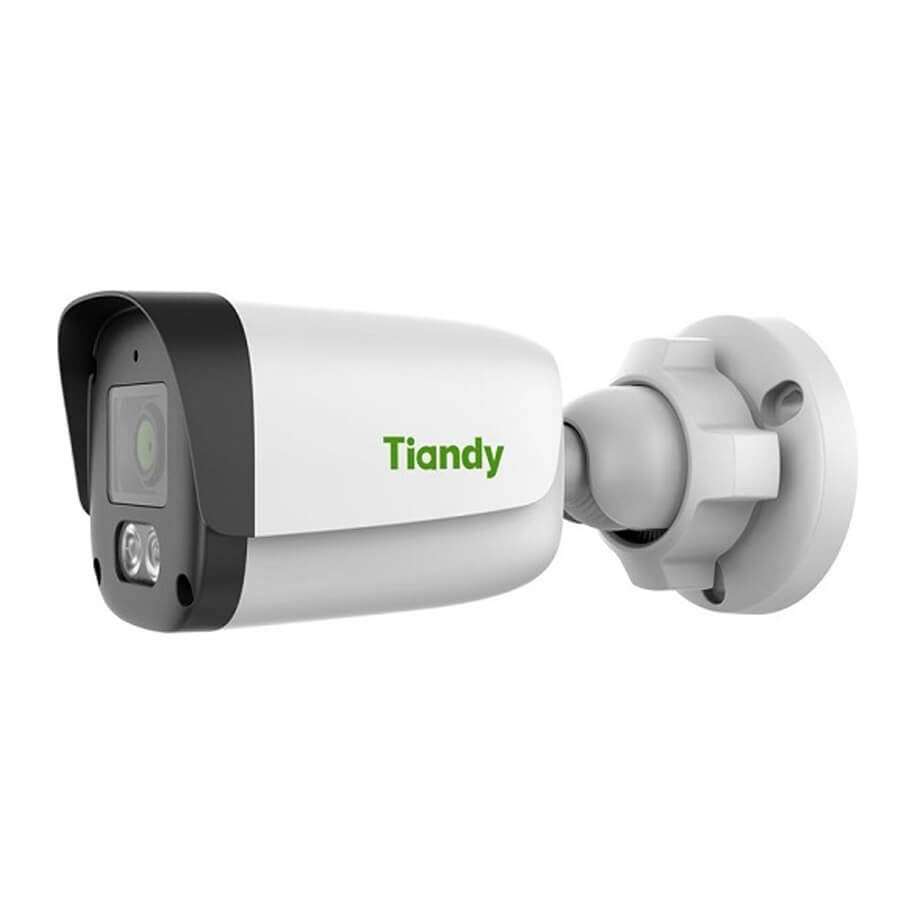

Camera IP hồng ngoại không dây 4.0 Megapixel TIANDY TC-C34QN Wifi
- Độ phân giải: 4MP, 2560x1440@20fps.
- Cảm biến hình ảnh: 1/2.8” CMOS.
- Chuẩn nén video: S+265, H.265, H.264.
- Chế độ xem ban đêm có màu: Color night vision.
- Tầm quan sát hồng ngoại: 50 mét.
- Tích hợp mic và loa.
- Hỗ trợ kết nối không dây Wifi.
- Khe cắm thẻ nhớ Micro SD tối đa 512GB.
- Tính năng thông minh: Hỗ trợ phát hiện con người (Human Detection).
- Chất liệu: Vỏ kim loại + nhựa.
- Tiêu chuẩn chống nước và bụi: IP67 (camera thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.8” CMOS |
| Min. Illumination | Color: 0.02Lux@(F2.0,AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >40dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 4mm: 86(H); 45.2(V); 99.1(D) |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 4MP,2560×1440@20fps |
| Main Stream | PAL:20fps(2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:20fps(2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576, 640×480) |
| Sub Stream | PAL:20fps(704×576, 704×288, 352×288, 640×360) NTSC:20fps(704×480, 704×240, 352×240, 640×360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict |
| Linkage Method | Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output |
| Network | |
| ANR | Yes |
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast; FTP |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; RTSP |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Moblie Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Wi-Fi | |
| Transmission Distance | Up tp 50m (based on actual environment) |
| Wireless Standard | IEEE802.11b/ 802.11g/802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
| Interface | |
| Communication Interface | 1*RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
| General | |
| Web Client Language | 3 languages Simple Chinese/English/Vietnamese |
| Operating Temperature | -30℃~60℃ (-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃ (-22℉~140℉) |
| Storage Humidity | 10%~95%RH (non-condensing) |
| Power Supply | DC12V±25%, Max. 7.5W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 164(L)73(W)73(H)mm |
| Gross Weight | 0.46kg |
