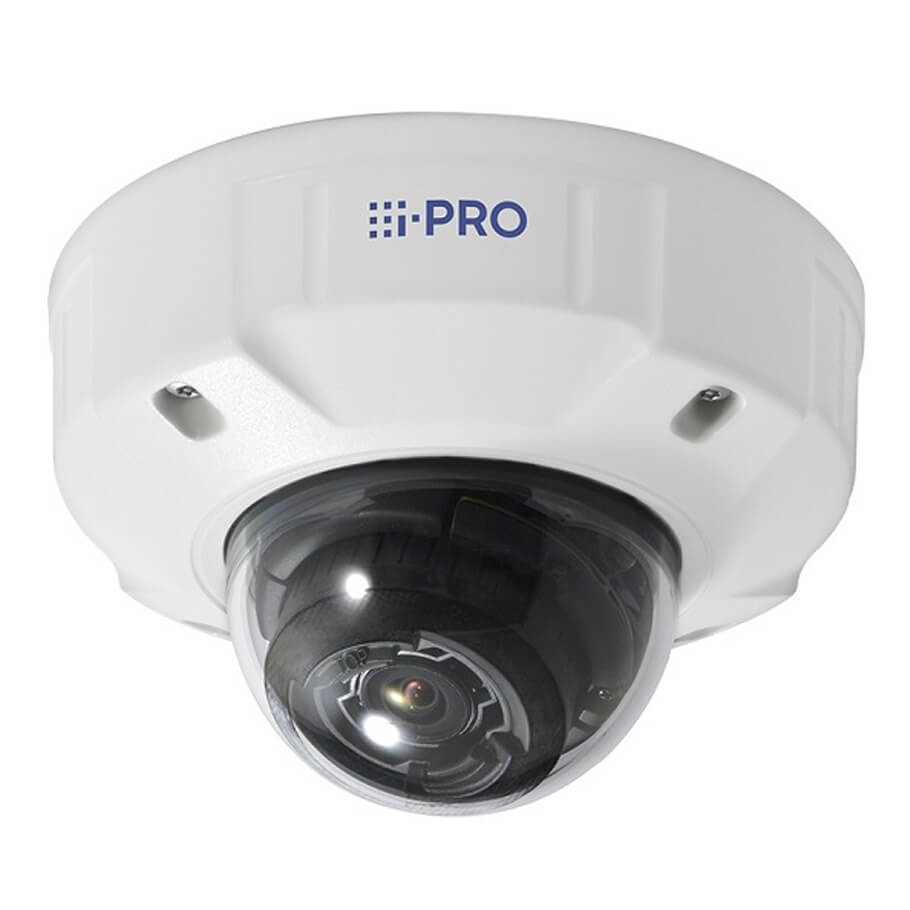

Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-S2570L
- Cảm biến hình ảnh: 1/1.8 type CMOS image sensor.
- Độ phân giải camera ip: 4.0 Megapixel.
- Tốc độ khung hình: 30 fps.
- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG.
- Ống kính: 4.3 mm - 8.6 mm.
- Độ nhạy sáng tối thiểu: Color: 0.09lx, BW: 0.05lx; B/W: 0.0 lux (with IR LED on).
- Góc quan sát: Ngang 52° ~ 101°, Dọc 29° ~ 55°.
- Tầm quan sát hồng ngoại: 40 mét.
- Chống ngược sáng thực WDR 120dB.
- Hỗ trợ tính năng iA (intelligent Auto).
- Intelligent VMD (i-VMD): Type6.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nhiệt độ hoạt động: -40°C to +60°C.
- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 256GB.
Đặc tính kỹ thuật
| Model | WV-S2570L |
| Camera | |
| Image Sensor | 1/1.8 type CMOS image sensor |
| Minimum Illumination | Color: 0.09 lx, BW: 0.05 lx (F1.5, Maximum shutter: Off (1/30s), AGC: 11) BW 0 lx (F1.5, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.006 lx, BW: 0.003 lx (F1.5, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1, ATW2, AWC |
| Shutter Speed | 1/30 Fix to 1/10000 Fix |
| Intelligent Auto | On/ Of |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max 120 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off The level can be set in the range of 0 to 31. (only when Super dynamic/ Intelligent Auto : Off) |
| Fog compensation | On/ Off, The level can be set in the range of 0 to 8 (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off, Maximum irradiation distance : 40 m {Approx. 131 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type Bundled License |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Image rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Zoom Ratio | 2x Optical zoom (Motorized zoom/ Motorized focus) 6x HD Extra Optical Zoom (when resolution is 1280x720) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 4.3 mm - 8.6 mm {5/32 inches – 11/32 inches} |
| Maximum Aperture Ratio | 1 : 1.5 (WIDE) – 1 : 2.4 (TELE) |
| Focus range | 1 m {39-3/8 inches} – ∞ |
| Angular Field of View | [16 : 9 mode] Horizontal : 52° (TELE) – 101° (WIDE) Vertical : 29° (TELE) – 55° (WIDE) |
| Adjusting Angle | |
| Adjusting Angle | Horizontal (PAN) angle : ±180° Vertical (TILT) angle : -30 to +85° Azimuth (YAW) angle : ±100° |
| Browser GUI | |
| Camera Control | Brightness, AUX On/ Off |
| Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/ JPEG (MJPEG) |
[16 : 9 mode] 3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180 |
| H.265/ H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
| JPEG | Image Quality: 10 steps |
| Smart Coding | GOP (Group of pictures) control : On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS: On/ Off |
| Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps 128 kbps |
| Audio transmission mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card | - H.265/ H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/ Output | |
| Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
| Audio input | ø3.5 mm stereo mini jack |
| For microphone input | Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage: 2.5 V ±0.5 V |
| For line input | Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | DC power supply: DC12V 880 mA/ Approx. 10.6W PoE (IEEE802.3af compliant) Device: DC48 V 230 mA/ Approx. 11.0 W (Class 0 device) |
| Ambient Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) (Power On range : –30 °C to +60 °C {–22 °F to 140 °F}) |
| Ambient Operating Humidity | 10 to 100% (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50E), NEMA 4X compliant |
| Shock Resistance | 50J (IEC 60068-2-75 compliant), IK10 (IEC 62262) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Dimensions *When using base bracket |
When using base bracket: ø164 mm × 139 mm (H) {ø6-15/32 inches × 5-15/32 inches (H)} Dome radius 42 mm {1-21/32 inches} When using attachment plate only: ø154 mm × 103 mm (H) {ø6-1/16 inches × 4-1/16 inches (H)} Dome radius 42 mm {1-21/32 inches} |
| Mass *When using base bracket |
When using base bracket: Approx. 1.6 kg {3.53 lbs} When using attachment plate only: Approx. 1.2 kg {2.65 lbs} |
| Finish | Main body: Aluminum die cast, Light gray Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: Polycarbonate resin, Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
