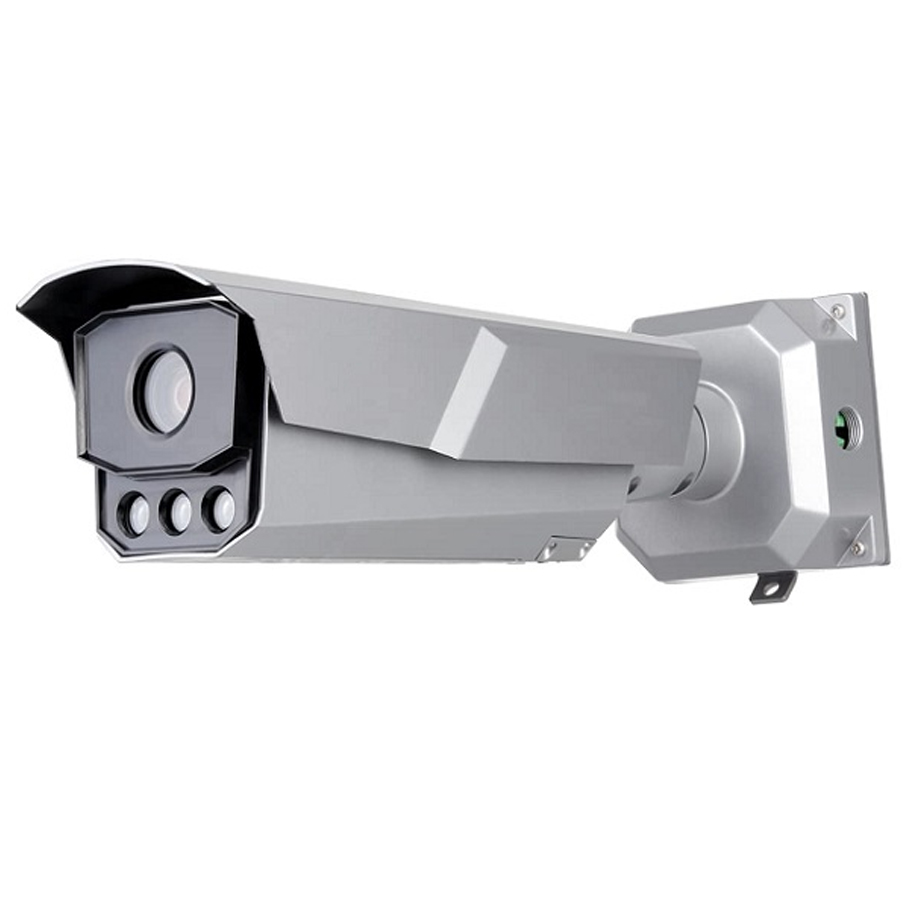

Camera IP nhận diện biển số xe 4.0 Megapixel HIKVISION iDS-ANPR403-BI/0832
- Camera nhận diện biển số xe tốc độ cao 4MP.
- Cảm biến hình ảnh: 1/1.8 inch progressive scan CMOS.
- Độ phân giải tối đa: 2688 × 1520 pixels.
- Độ nhạy sáng tối thiểu: Color: 0.001 Lux @ (F1.2, AGC ON), 0.0005 Lux with IR.
- Ống kính: 8mm to 32mm, F1.7, Auto focus.
- Tốc độ chụp ảnh: 5 to 120km/h.
- Chuẩn nén hình ảnh: H.265, H.264.
- Chức năng chống ngược sáng thực 140dB WDR.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng bù ngược sáng BLC.
- Hỗ trợ Alarm I/O.
- Hỗ trợ 1 RS-485 interface & 1 Wiegand.
- Tầm quan sát hồng ngoại: Lên đến 60 mét.
- Hỗ trợ khe cắm thẻ nhớ dung lượng lên đến 512GB.
- Hỗ trợ biển số xe máy.
- Tính năng thông minh khác: Thương hiệu xe.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/1.8 inch progressive scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.001 Lux |
| Shutter Time | 1/25 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens | |
| Focal Length & FOV | 8 mm to 32 mm: Horizontal: 41.9° to 15.1°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17 |
| Focus | Auto |
| Iris Type | DC-IRIS |
| Aperture | 8 mm to 32 mm: F1.7 |
| Illuminator | |
| Built-in Supplement Light Type | IR light |
| Built-in Supplement Light Range | Up to 60 m |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) |
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) |
| Third Stream | 50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288) |
| Video Compression | H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/Main profile/High profile |
| H.265 Type | Main profile |
| Audio | |
| Audio Compression | G.711/G.722.1 |
| Audio Bit Rate | 8 Kbps (G.711)/16 Kbps (G.722.1) |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, QoS, IPv4/IPv6, UDP, SSL/TLS, ISUP, ARP, 802.1X |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, user |
| Security | Password protection, Complicated password, HTTPS encryption, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.1, Host authentication (MAC address) |
| Network Storage | Micro SD/TF card (512 GB), local storage and CVR, NVR, ANPR |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image | |
| Image Settings | Rotation mode, saturation, brightness, contrast, sharpness, AGC, adjustable white balance via client software or web browser |
| Day/Night Switch | Auto/Scheduled/Triggered by alarm in |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC, 3D DNR |
| Picture Overlay | Logo picture can be overlaid on video with 128 × 128 in 24-bit bmp format |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M/1000M Ethernet interface |
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB |
| Audio | Supported |
| Alarm | 1 input interface, 1 output interface, 2 relays |
| RS-485 | 1 RS-485 interface |
| Wiegand | 1 Wiegand (Card ID 26bit, SHA-1 26bit, Hik 34bit) |
| Event | |
| Basic Event | HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception |
| Road Traffic and Vehicle Detection | |
| Coverage | Up to 3 lane(s) |
| Smart Function | License plate recognition |
| Accuracy (under recommended installation and lighting conditions) | Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| Motorcycle LPR | Supported |
| Capture Speed Range | 5 to 120 km/h |
| General | |
| Operating System | Linux |
| Power | DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block, PoE: 802.3at, Type 2, Class 4, max. 15 W |
| Material | Aluminum alloy |
| Dimension | 428.5 × 120 × 132.8 mm |
| Weight | Approx. 3 kg |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Protection | IK10, IP67 |
- Xuất xứ: Trung Quốc.
