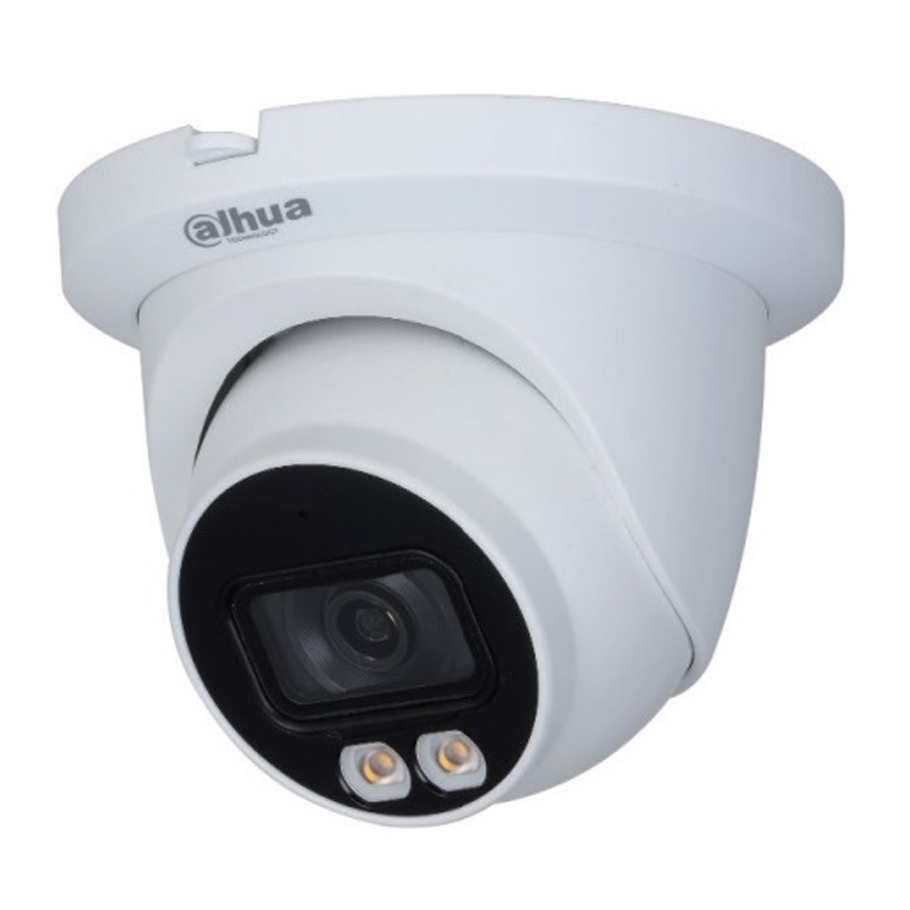

Camera IP Dome Full color 4.0 Megapixel DAHUA DH-IPC-HDW3449TMP-AS-LED
- Cảm biến hình ảnh: 1/2.7” CMOS.
- Độ phân giải: 4MP 25/30fps@2688 x 1520.
- Chuẩn nén hình ảnh: H.265+ và H.264+.
- Camera hỗ trợ công nghệ Full-Color với độ nhạy sáng 0.003 Lux@F1.0.
- Ống kính cố định: 3.6mm (Option 2.8mm).
- Chống ngược sáng WDR (120dB).
- Hỗ trợ đèn LED trợ sáng lên đến 30 mét.
- Chế độ Ngày Đêm ICR, chống nhiễu hình ảnh 3DNR, Tự động cân bằng trắng AWB, Tự động bù sáng AGC, Chống ngược sáng BLC.
- Chức năng thông minh: Tripwire, Intrusion (phân biệt người và xe), SMD Plus.
- Tích hợp mic.
- Hỗ trợ khe cắm thẻ nhớ lên đến 256GB.
- Chuẩn tương thích Onvif 2.4.
- Chất liệu: Kim loại.
- Điện áp: DC12V hoặc PoE.
- Nhiệt độ hoạt động: -40ºC ~ + 60ºC.
- Tiêu chuẩn chống nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.7” 4 Megapixel progressive CMOS |
| Max. Resolution | 2688 (H) ×1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Signal System | PAL |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100, 000 s |
| Min. Illumination | 0.003 Lux@F1.0 |
| S/N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.4 ft) (Warm light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (warm LED) |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: Horizontal 103° × vertical 53° × diagonal 122° 3.6 mm: Horizontal 80° × vertical 43° × diagonal 95° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.2 m (3.9 ft) 3.6 mm: 2.4 m (7.9 ft) |
| DORI Distance | Lens |
| Professional, Intelligent | |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream (2688 × 1520 @ 1–25/30 fps) Sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps) Third stream (1280 × 720 @ 1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF(Profile S/ Profile G/ Profile T); CGI; P2P; Milestone; Genetec |
| Scene self-adaptation (SSA) | Yes |
| User/Host | 20 (Total bandwidth: 64M.) |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
| Browser | IE: IE8; IE9; IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Power | |
| Power Supply | 12V DC/PoE |
| Power Consumption | < 8.5W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/ less than 95% |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Inner core: Metal Cover: Metal Decoration ring: Plastic |
| Dimensions | 99.1 mm × Φ121.9 mm (3.9' × Φ4.8') |
| Net Weight | 480 g (1.05 lb) |
- Sản xuất tại Trung Quốc.
