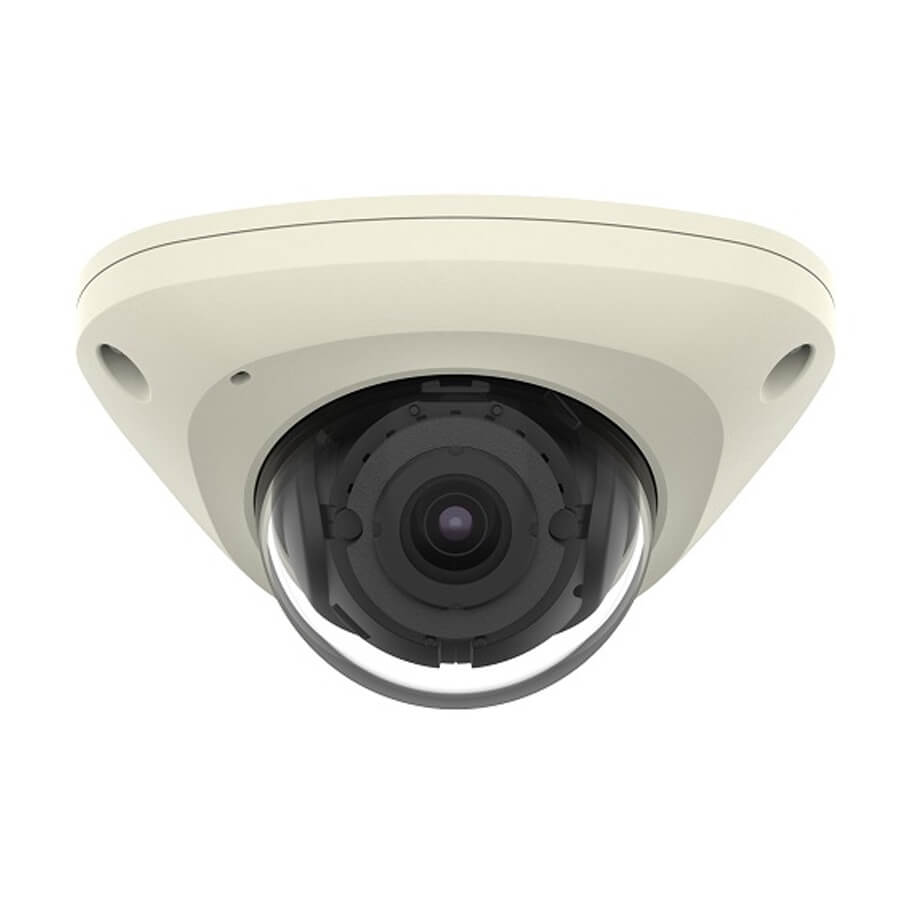

Camera IP Flateye 2.0 Megapixel Hanwha Vision XNV-6012
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ (tối đa 512GB).
- Độ phân giải camera ip: 2.0 Megapixel.
- Độ nhạy sáng: 0.04 Lux @ F2.0 (Color), 0.04 Lux @ F2.0 (B/W).
- Ống kính cố định: 2.4mm.
- Chức năng quan sát Ngày và Đêm.
- Chức năng chống ngược sáng WDR (150dB).
- Cổng kết nối: RJ-45(10/100BASE-T).
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ LDC.
- Tiêu chuẩn chống va đập: IK10.
- Tiêu chuẩn chống ăn mòn: NEMA4X.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Effective Pixels | 1945(H)x1097(V) |
| Min. Illumination | Color: 0.04 Lux (F2.0, 1/30sec) |
| BW: 0.04 Lux (F2.0, 1/30sec) | |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.4mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 135.4˚ / V: 71.2˚ / D: 161.6˚ |
| Focus Control | Manual |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | -5˚~5˚ / 0˚~67˚ / -90˚~90˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (Electrical) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| DPTZ preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC (4mA), Input impedance: 2 ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, |
| 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max.60fps/50fps(60Hz/50Hz) |
| MJPEG: Max.30fps/25fps(60Hz/50Hz) | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast (20 users) / Multicast |
| Multiple streaming (Up to 10 profiles) | |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Recommended Browser: Google Chrome | |
| Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) | |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% |
| Certification | IP66, IK10, NEMA4X |
| EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009 | |
| EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 | |
| Electrical | |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.50W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Dimensions | 99 x 52 x 100mm |
| Weight | 295g |
- Bảo hành: 24 tháng.
