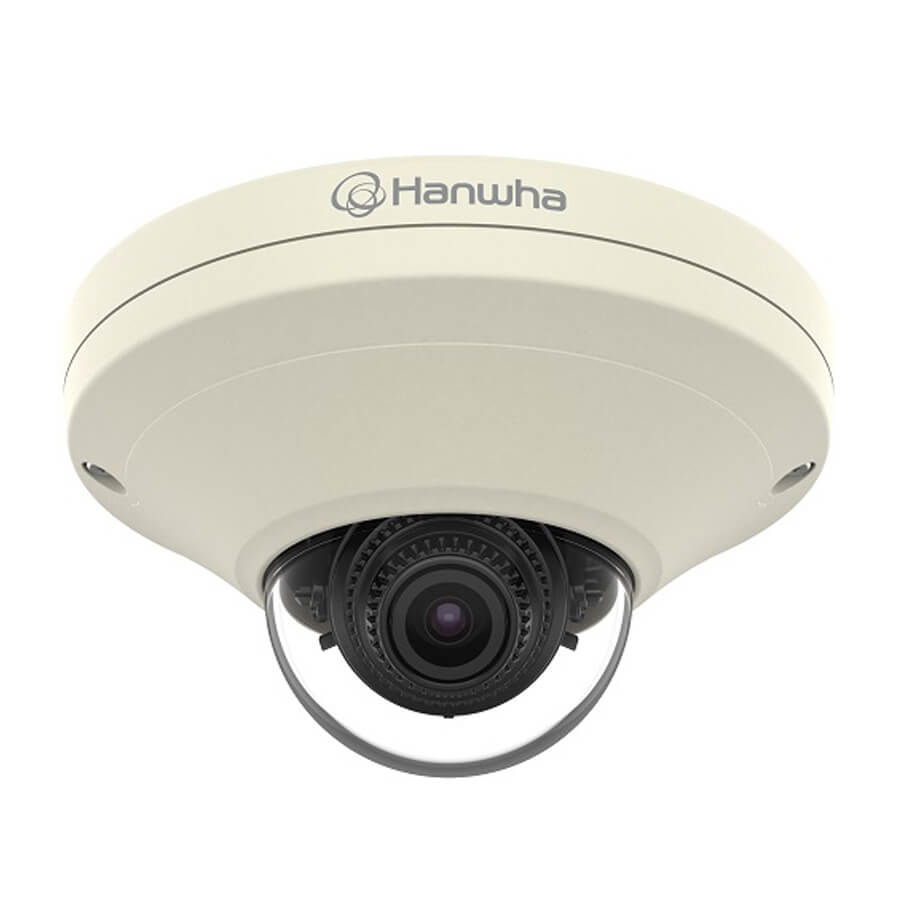

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6011
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 256GB.
- Độ phân giải camera ip: 2.0 Megapixel.
- Độ nhạy sáng: (Color) 0.055 Lux (1/30sec, F2.0), (B/W) 0.055 Lux (1/30sec, F2.0)
- Ống kính: 2.8mm (fixed).
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống sương mù Defog.
- Chức năng báo động, phát hiện hướng, phát hiện sương mù, phát hiện âm thanh, theo dõi tự động kỹ thuật số, phân loại âm thanh, giả mạo.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE.
Đặc tính kỹ thuật
| VIDEO | |
| Imaging Device | 1/2.8 inch 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M pixels |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M pixels |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.055 Lux (1/30sec, F2.0) |
| B/W : 0.055 Lux (1/30sec, F2.0) | |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| USB : Micro USB type B, 1280 x 720, for installation | |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 112˚ / V : 62˚ / D : 130˚ |
| Min. Object Distance | 0.2m (0.66ft) |
| Focus Control | Manual |
| Lens / Mount Type | Fixed / Board-in Type |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | Pan : 0° ~ +353° / Tilt : 0° ~ +59° / Rotate : 0° ~ +353° |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 85 characters) |
| - W/W : English / Numeric / Special characters | |
| - China : English / Numeric / Special / Chinese characters | |
| - Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | |
| Day & Night | Auto (Electrical) / Color / B/W |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRⅤ (2D + 3D Noise Filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Grey / Green / Red / Blue / Black / White – Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level adjustment |
| LDC | Off / On (5 levels with min / max) |
| Electronic | Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital | PTZ 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90˚ / 270˚ |
| Video Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis) Appear, Face detection, Motion detection, Digital auto tracking, People counting, Heatmap, Queue management |
| Alarm Triggers | Motion detection, Video analytics, Network disconnect |
| Alarm Events | File upload via FTP, E-mail, Notification via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, DPTZ preset |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240. |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps |
| Smart Codec | Manual mode (area-based : 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.265 / H.264 / MJPEG : Target Bitrate Level Control |
| Bitrate Control Method | H.265 / H.264 : CBR OR VBR, MJPEG : VBR |
| Streaming Capability | Multiple Streaming (Up to 10 Profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address | |
| Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC (256GB) |
| - Motion Images recorded in the SD / SDHC / SDXC memory card can be | |
| downloaded. NAS (Network Attached Storage), Local PC for Instant recording | |
| Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform | |
| Webpage | |
| Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Supported OS | Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12. Non-plugin WebViewer |
| Supported Browser | Google Chrome 54, MS Edge 38, Mozilla Firefox 49 |
| (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer | |
| - Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only) | |
| Central Management | Software SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10, NEMA4X |
| ELECTRICAL | |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 6.5W |
| MECHANICAL | |
| Color / Material | Ivory / Metal |
| Dimensions | Ø112.8 x 63.7mm |
| Weight | 420g |
- Bảo hành: 24 tháng.
