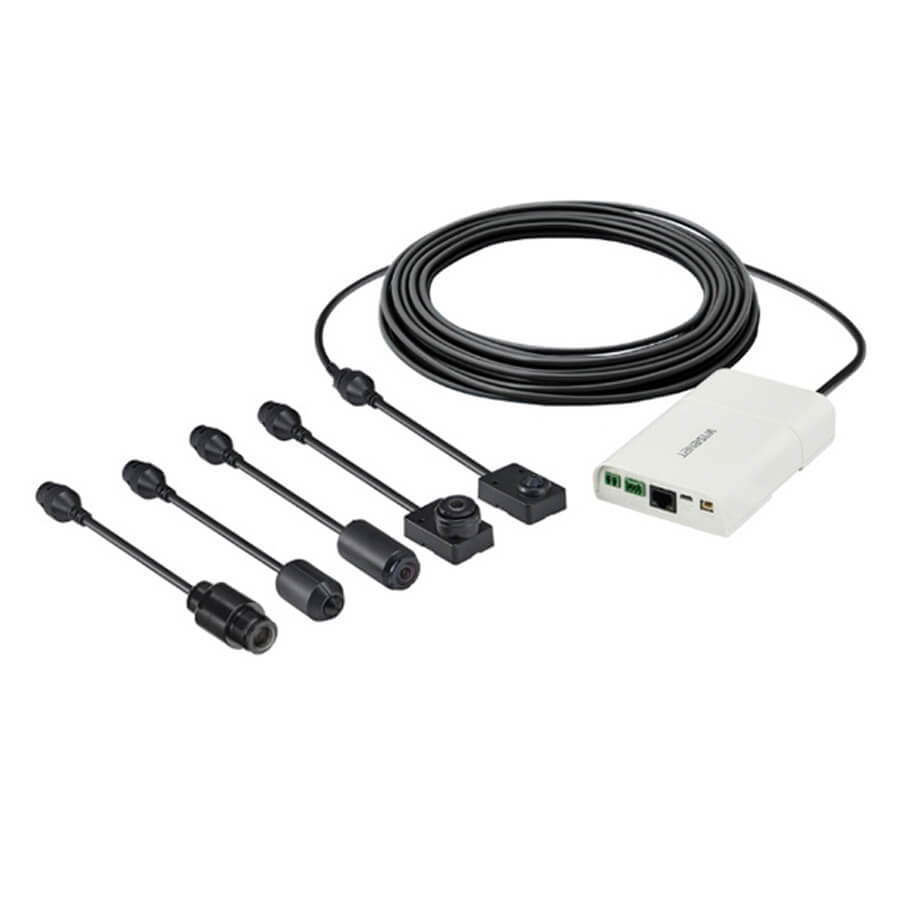

Camera IP 2.0 Megapixel Hanwha Vision XNB-6001
- Độ phân giải camera ip: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ tối đa 256GB.
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng chống sương mù Defog.
- Chức năng ổn định hình ảnh số DIS.
- Chức năng phát hiện chuyển động.
- Hỗ trợ WiseStreamII.
- Hỗ trợ LDC (Lens Distortion Correction).
- Chức năng thông minh: Tự động theo dõi, nhận diện khuôn mặt, phát hiện đối tượng lảng vảng, bản đồ nhiệt, đếm người, quản lý xếp hàng, phát hiện can thiệp, giả mạo.
- Nguồn điện: 12VDC.
- Kích thước: 131.1 x 28 x 86mm.
- Trọng lượng: 245g.
Đặc tính kỹ thuật
| VIDEO | |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation |
| USB : Micro USB type B, 1280 x 720 for installation | |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 85 characters) |
| - W/W : English / Numeric / Special characters | |
| - China : English / Numeric / Special / Chinese characters | |
| - Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by resolution | |
| Day & Night | Auto (Electrical) / Color / B/W |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) |
| - Color : Gray / Green / Red / Blue / Black / White | |
| - Mosaic | |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium) |
| Contrast | Level adjustment |
| LDC (Lens Distortion Correction) | Off / On (5 Levels with min / max |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway View : 90˚/270˚ |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog & Dust detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, |
| Face detection, Motion detection, Digital auto tracking, People counting, Heatmap, Queue management | |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload Via FTP, E-Mail, Notification via e-mail, Local storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps |
| Smart Codec | Manual mode (Area-based : 5ea) |
| WiseStreamII | Support |
| Video Quality Adjustment | H.265 / H.264 / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in) |
| Supply voltage: 2.5V DC (4mA), Input Impedance: Approx. 2K Ohm | |
| Audio Out | Line out, Max output level: 1 Vrms |
| Audio Compression Format | G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz |
| G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz | |
| Audio Communication | Bi-directional (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, |
| DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, | |
| QoS, PIM-SM, UPnP, Bonjour | |
| Security | Unicast / Multicast |
| Max. User Access | 20 Users at Unicast Mode |
| Edge Storage | SD/SDHC/SDXC (256 GB) |
| Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. | |
| NAS (Network Attached Storage), Local PC for instant recording | |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Open Platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| MECHANICAL | |
| Color / Material | Ivory |
| Dimensions | 131.1 x 28 x 86mm |
| Weight | 245g |
- Bảo hành: 24 tháng.
