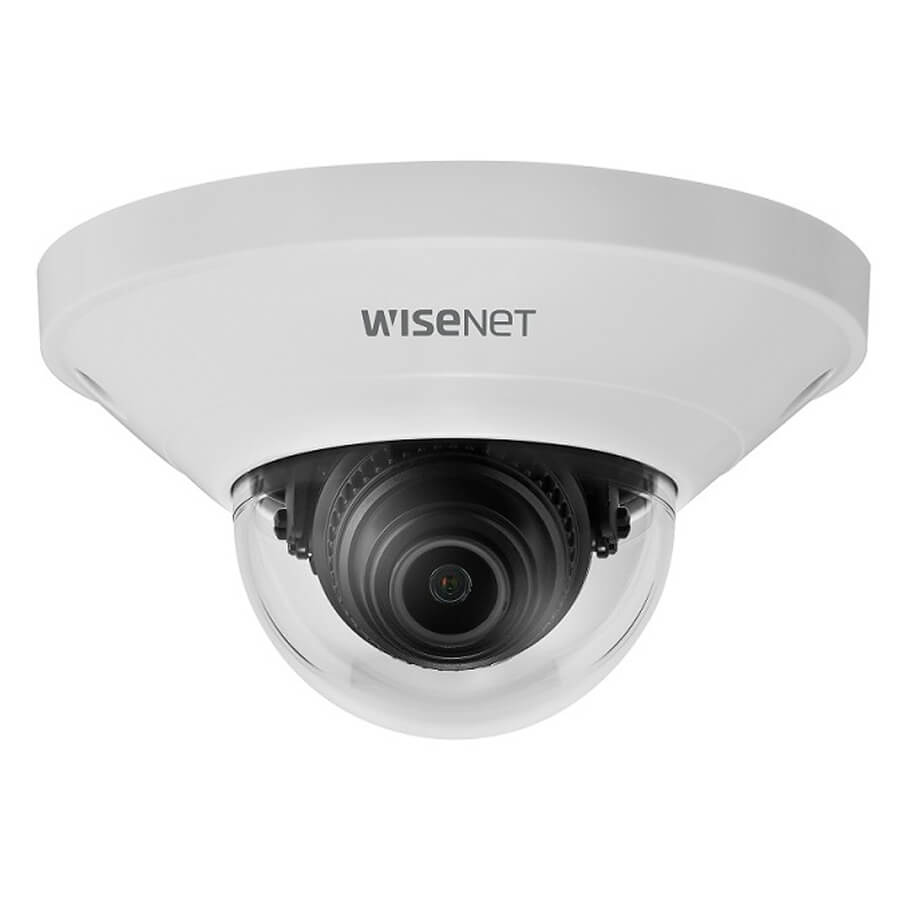

Camera IP Dome 2.0 Megapixel Hanwha Vision QND-6021
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải camera ip: 2 Megapixel (1920 x 1080).
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Ống kính cố định: 4mm.
- Độ nhạy sáng: 0.1Lux (Color).
- Hỗ trợ chức năng Ngày & Đêm, chống ngược sáng WDR (120dB).
- Chức năng đặc biệt: Giả mạo, phát hiện chuyển động, phát hiện lệch tâm.
- Chế độ xem hành lang, hỗ trợ WiseStream II.
- Khe cắm bộ nhớ Micro SD/ SDHC/ SDXC (tối đa 128GB).
- Nguồn điện: PoE.
Đặc tính kỹ thuật
| Model | QND-6021 |
| Video | |
| Imaging Device | 1/2.8 inch 5MP CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Min. Illumination | Color: 0.1Lux(F1.6, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | 0° ~ 350° / 0° ~ 69° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Network | |
| Ethernet | RJ-45 (10/ 100 BASE-T) |
| Video Compression Format | H.265/H.264: Main/High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Smart Codec | WiseStream II |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| General | |
| Input Voltage / Current | PoE (IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 4.8W, typical 2.8W |
| Certification | IP42, IK08 |
| Dimension (WxHxD) | Ø99 x 56 mm |
| Weight | 145g |
- Bảo hành: 24 tháng.
