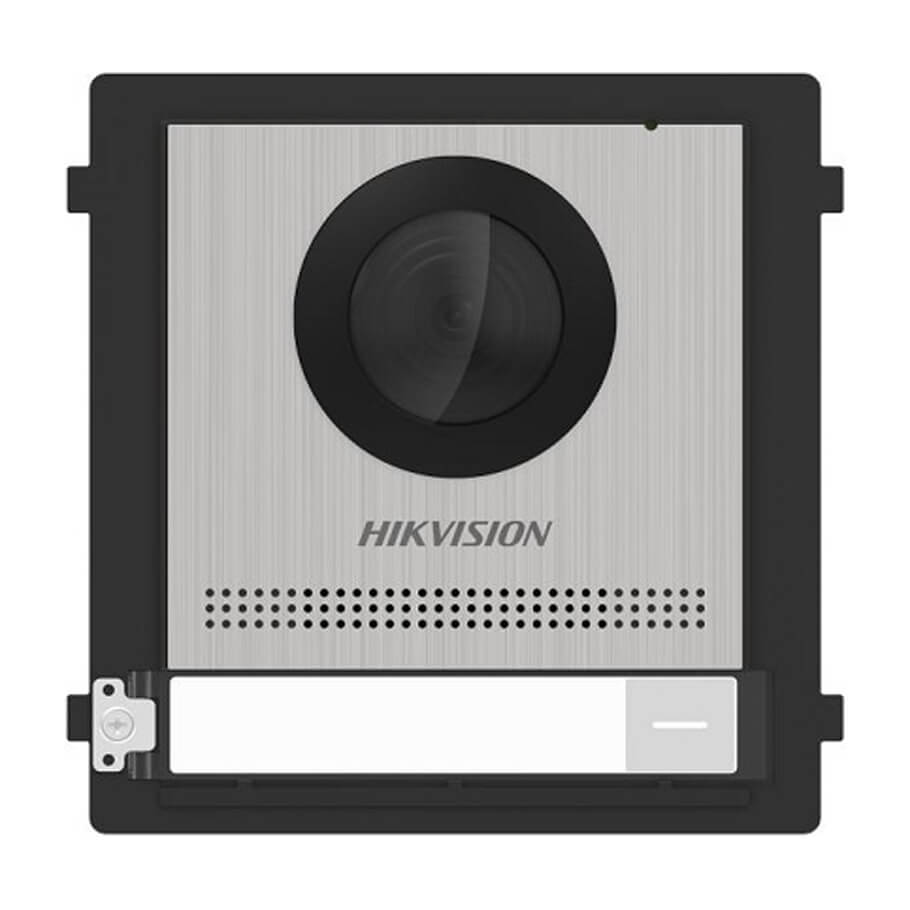

Camera chuông cửa IP HIKVISION DS-KD8003-IME1(B)/S
- Camera mắt cá 2MP với hỗ trợ hồng ngoại.
- Nút gọi vật lý để dễ dàng thực hiện cuộc gọi.
- Tích hợp micro đa hướng, loa.
- Điều khiển hai khóa.
- Dung lượng: 2000 người dùng, 6000 thẻ.
- Kết nối tới 500 trạm và 16 màn hình phụ.
- Cung cấp nguồn PoE tiêu chuẩn.
- Mức độ bảo vệ IP65.
- Cấu hình thuận tiện từ xa qua Web.
- Cung cấp trực tiếp đầu ra nguồn 12V, 500mA cho một khóa điện tử mà không cần thêm nguồn điện.
- Chất liệu thép không gỉ chất lượng cao.
Thông số kỹ thuật
| System parameters | |
| Operation system | Linux |
| ROM | 32 MB |
| Processor | Embeded high performance processor |
| Video parameters | |
| Lens | 2 MP HD camera |
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | Low illumination, IR supplement lights |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U/G.711 A |
| Audio output | 1 Built-in loudspeaker |
| Audio compressi on bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Card capacity | 6000 |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network parameters | |
| Network protocol | TCP/IP, RTSP |
| Device interfaces | |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Lock control | 2 relays, Max. 30 VDC, 2 A |
| Door contact input | 2 |
| General | |
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Weight | 410g |
| Protective level | IP65 |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Power supply | 12 VDC, 500 mA, IEEE 802.3af, PoE |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
| Language | English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arab ic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
- Bảo hành: 24 tháng.
