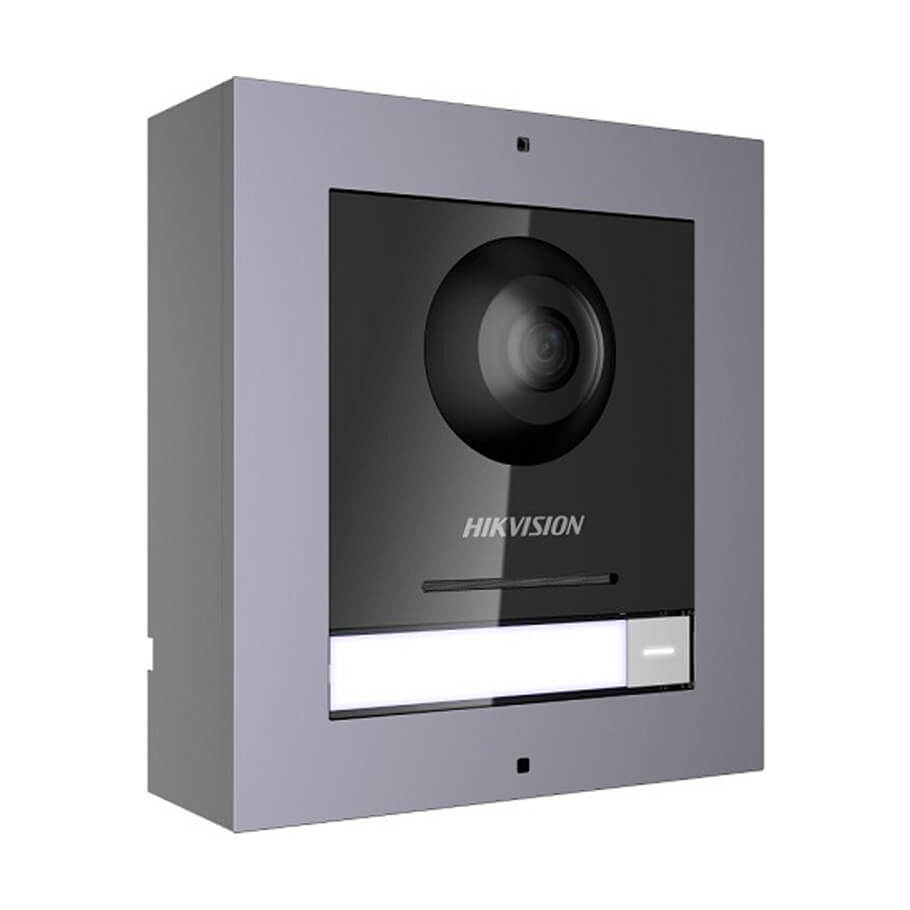

Camera chuông cửa IP HIKVISION DS-KD8003-IME1 Surface
- Hệ điều hành: Linux.
- Camera độ phân giải 2.0MP, tích hợp hồng ngoại.
- Dung lượng: 2000 người dùng, 500 linked indoor station.
- Phương thức giao tiếp: TCP/IP, RSTP.
- Tích hợp Mic và loa.
- Cấp độ bảo vệ: Tiêu chuẩn IP65 (DS-KD8003 + DS-KD-ACW1).
- Nguồn cấp: 12V DC/PoE (IEEE 802.3af).
Thông số kỹ thuật
| System parameters | |
| Operation system | Embedded Linux operation system |
| Flash | 16 MB |
| RAM | 256 MB |
| CPU | Embedded MCU Processor |
| Video parameters | |
| Supplement light | IR supplement |
| Video compression standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 180° Vertical: 96° |
| WDR | Support |
| Pixel | Main stream: 1920 × 1080 Sub stream: 720 × 480 |
| Audio parameters | |
| Audio compression standard | G.711 U |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 85 dB within 20 cm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Linked indoor station | 500 |
| Network parameters | |
| Communication protocol | TCP/IP, RSTP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Device interfaces | |
| Alarm input | 4 |
| Network interface | 1 |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| Lock control | 2 |
| Door contact input | 2 |
| Power interface | 1 |
| General | |
| Button | 1 |
| Installation | Surface mounting |
| Weight | 375g |
| Protective level | IP65 |
| Power supply method | 12 VDC/PoE (IEEE 802.3af) |
| Working temperature | -40°C to +55° C(-40°F to 131°F) |
| Working humidity | 10% to 95% |
| Dimensions | 98 × 99.8 × 43.9 mm |
| Application environment | Outdoor |
| Power consumption | 4W |
- Bảo hành: 24 tháng.
