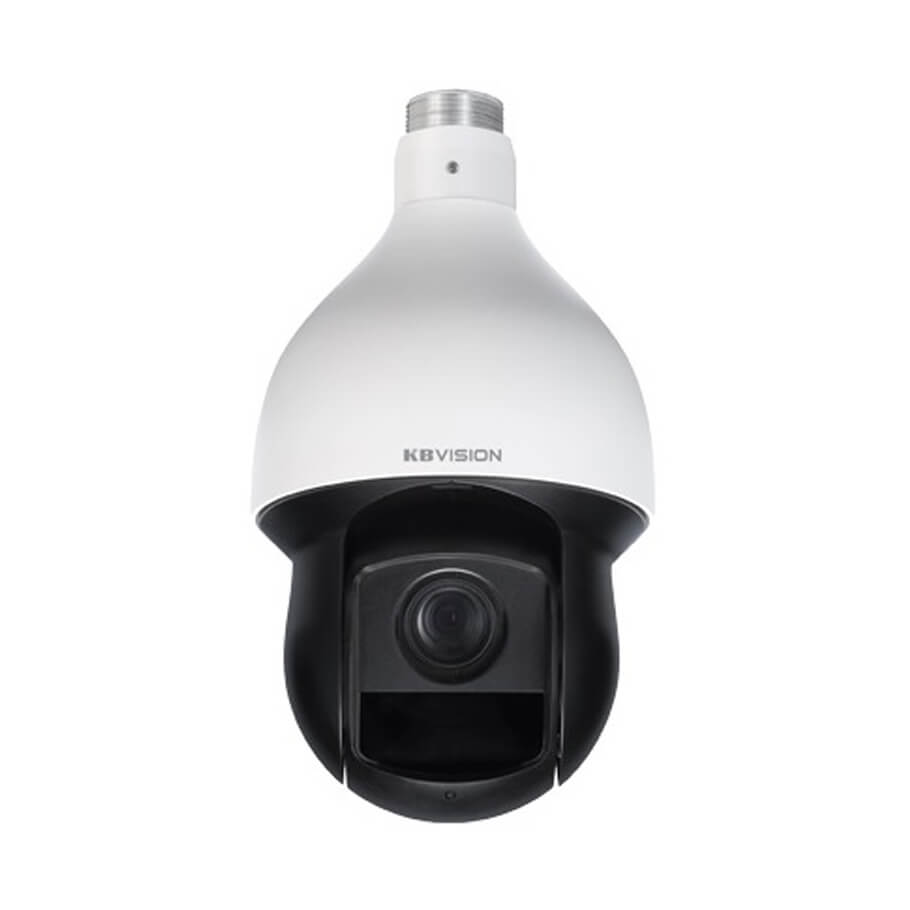

Camera Speed Dome hồng ngoại 2.0 Megapixel KBVISION KX-D2007PC3
- Camera quan sát truyền tải tín hiệu HD trên dây cáp đồng trục không bị trễ. Hỗ trợ điều khiển OSD trên cáp đồng trục.
- Hỗ trợ 4 chế độ: CVI, TVI, AHD, Analog.
- Cảm biến hình ảnh: 1/2.8” STARVIS™ CMOS.
- Độ phân giải: 25/30fps@1080P, 25/30/50/60fps@720P.
- Hỗ trợ công nghệ Starlight với độ nhạy sáng cực thấp 0.005Lux@F1.6; 0Lux@F1.6 (IR on).
- Chống ngược sáng thực WDR 120dB, chế độ ngày đêm (ICR), tự động cân bằng trắng (AWB), tự động bù sáng (AGC), chống ngược sáng (BLC). Chống nhiễu (3D-DNR).
- Tầm quan sát hồng ngoại: 150m.
- Zoom quang: 25x (4.8mm~120mm).
- Zoom số: 16x.
- Quay quét ngang 400°/s, quay dọc lên xuống 300°/s (preset), hỗ trợ lật hình 180°.
- Hỗ trợ cài đặt trước 300 điểm với giao thức (DH-SD, Pelco-P/D), 5 khuôn mẫu (Pattern), 8 hành trình (Tour), 5 tự động quét và tự động quay (Auto Scan), (Auto Pan), hỗ trợ chạy lại các cài đặt trước khi có thao tác điều khiển (Idle Motion).
- Tích hợp 1 cổng audio in, 1 RS485.
- Điện áp: DC 24V/2.5A.
- Công suất: 10W, 21W (IR on + PTZ).
- Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/3 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (IR light) |
| Illumination Distance | 150 m (492.13 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; manual |
| Illuminator Number | 4 (IR) |
| Lens | |
| Focal Length | 4.8 mm–120 mm |
| Max. Aperture | F1.6–F3.5 |
| Field of View | H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.56 ft) |
| Iris Control | Auto; manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–300°/s Tilt: 0.1°–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern;Preset;Scan;Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| Video | |
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480) |
| Video Frame Rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) |
| Day/Night | Yes |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Yes |
| S/N Ratio | ≥50 dB |
| Function | |
| CVI Product Output Mode | TVI;CVI;CVBS;AHD(CVBS is only used for debugging) |
| Port | |
| Analog Output | 1 channel (CVBS/CVI output, BNC) |
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 |
| Alarm Linkage | Scan; preset; tour; pattern; alarm digital output |
| Alarm Event | Alarm input |
| General | |
| Power Supply | 24 VDC, 2.5 A ± 25% |
| Power Consumption | Basic: 10 W Max.: 21 W (PTZ + illuminator) |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66; TVS 6000V lightning proof; surge protection; voltage transient protection |
| Product Dimensions | 310.0 mm × Φ185.7 mm (12.20' × Φ7.31') |
| Net Weight | 3.9 kg |
- Bảo hành: 24 tháng.
