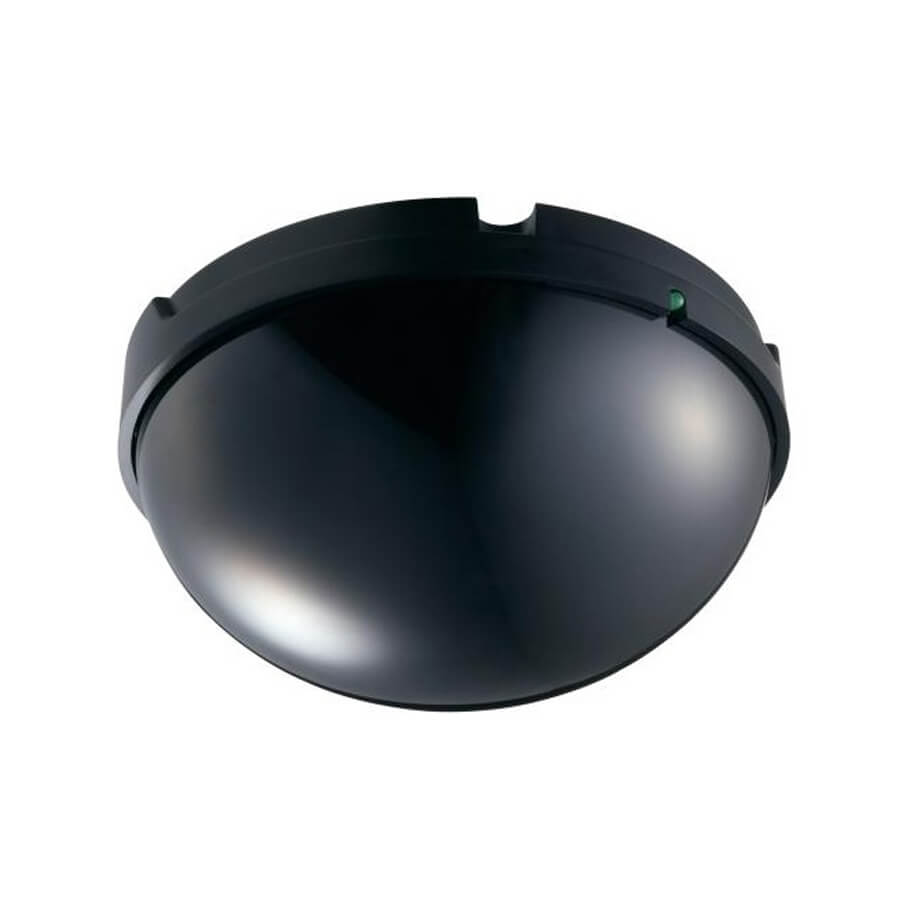

Bộ thu hồng ngoại không dây TOA IR-510R
The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.
Đặc tính kỹ thuật
| Model | IR-510R |
| Power Source | 24 VDC (supplied from the IR-702T) |
| Current Consumption | Max. 60 mA |
| Wavelength | 870 nm |
| Carrier Frequency | Channel A: 3.100 MHz Channel B: 3.350 MHz |
| Communication Area | Approx. 7m in radius from the point underneath the unit |
| Connection Terminal | 75Ω, BNC jack |
| Finish | Filter section: Polycarbonate, optical cut filter Base: ABS resin, black |
| Dimensions | φ120 × 71.3 (H) mm |
| Weight | 205g |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
