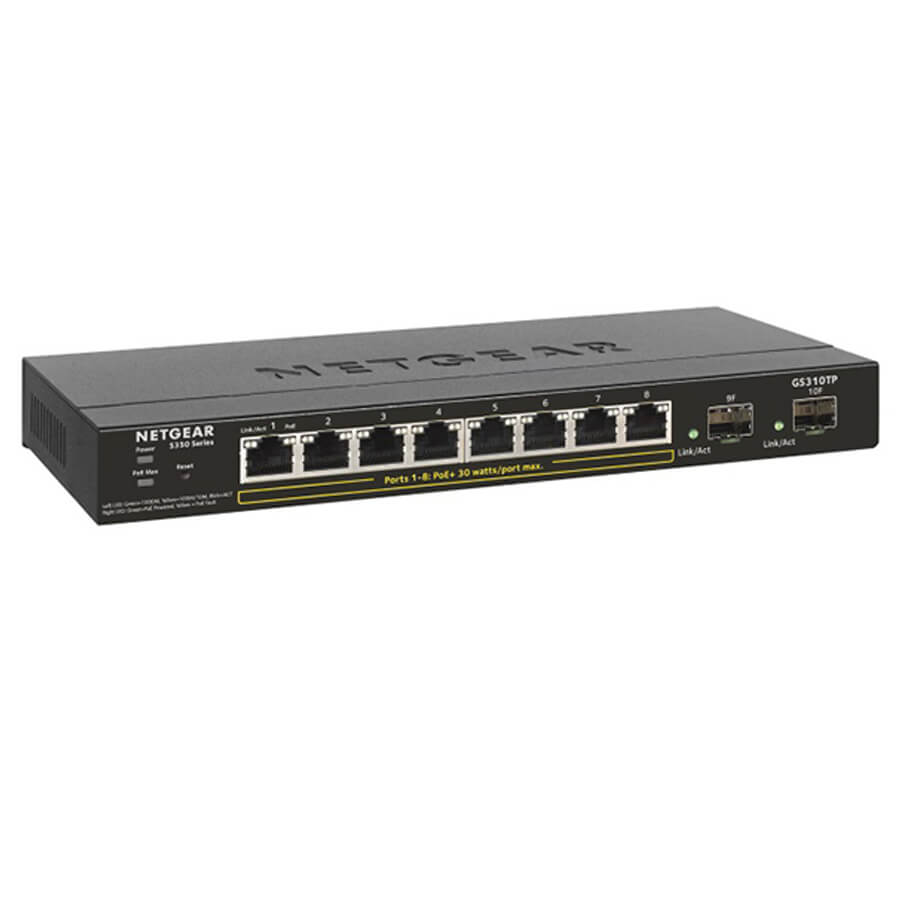

S350 8-Port Gigabit Ethernet PoE+ Smart Switch with 2 SFP Ports NETGEAR GS310TP
- Switch quản lý thông minh Pro S350 Series 8 cổng Gigabit Ethernet với 2 cổng SFP.
- Hỗ trợ giao diện quản lý thông qua HTTP/HTTPS, Smart Control Center Utility (SCC), RMON, SNMP.
- CPU/RAM/FLASH: Bộ vi xử lý MIPS-4Kec 500MHz lõi đơn, RAM DDR 128MB, và bộ nhớ FLASH 32MB.
- Cổng kết nối:
o 8 cổng RJ-45 tốc độ 10/100/1000 Mbps (PoE+ trên cả 8 cổng)
o 2 cổng SFP 1G cho kết nối quang
- Băng thông: 20 Gbps.
- Bộ đệm/ACL/MAC/VLAN/Jumbo:
o Bộ đệm 512 KB
o Hỗ trợ 100 ACL chia sẻ
o 8K địa chỉ MAC
o 64 VLAN
o Gói tin Jumbo lên đến 10k
- Nhóm Multicast IGMP/LACP:
o 256 nhóm IGMP Multicast.
o Hỗ trợ 8 nhóm LACP (LAG) với tối đa 8 cổng trong mỗi nhóm.
- Tính năng: Chỉ hỗ trợ Layer 2 (Tầng liên kết dữ liệu).
- Công suất PoE: 55W (công suất cung cấp cho các thiết bị kết nối PoE).
- Quạt: Không quạt.
- Nguồn điện: Sử dụng nguồn ngoài 54V-1.25A.
- Kiểu dáng: Thiết kế để bàn.
Thông số kỹ thuật
| Model | GS310TP |
| 10M/100M/1G RJ-45 copper ports | 8 |
| PoE / PoE+ ports | 8 PoE+ (55W PoE budget) |
| 1G SFP (fiber) ports | 2 (dedicated) |
| CPU | 500MHz, 128MB RAM, 32MB FLASH |
| Packet buffer memory (Dynamically shared across only used ports) |
512KB |
| Forwarding modes | Store-and-forward |
| Bandwidth | 20 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) and Strict Priority |
| MAC address database size (48-bit MAC addresses) |
8K |
| Multicast groups | 256 |
| Number of VLANs | 64 |
| Number of DHCP snooping bindings | 8K |
| Access Control Lists (ACLs) | 100 shared for MAC (ingress) |
| Packet forwarding rate (64 byte packet size) (Mpps) |
14.8 |
| Jumbo frame support (bytes) | 10K |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) |
Fan-less |
| Mean Time Between Failures (MTBF) @ 25°C | 1,081,119 hrs (123yrs) |
| 1G Copper Latency (64-byte; 1518-byte; 9216-byte frames) |
3.995µs; 4.202µs; 3.966µs |
| 1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) |
3.428µs; 3.666µs; 3.400µs |
| L2 SERVICES - VLANS | |
| IEEE 802.1Q VLAN tagging | Yes |
| IP-based VLANs | Yes |
| MAC-based VLANs | Yes |
| Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
| Auto-VoIP | Yes, based on protocols (SIP). Prioritzes traffic to a higher queue |
| Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED |
| Auto-Video VLAN | Yes |
| RMON group 1,2,3,9 | Yes |
| Port mirroring | Yes ingress and egress |
| Many-to-one port mirroring | 10 |
| Web browser-based graphical user interface (GUI) |
Yes |
| Smart Control Center (SCC) for multi-switch management |
Yes |
| Dual software (firmware) image | Yes |
| LEDS | |
| Per port | Speed, Link/ Activity, or PoE in different mode |
| Per device | Power, PoE Max |
| Dimensions | 236 x 101 x 30 mm |
| Weight | 0.61kg |
- Bảo hành: 1 năm.
