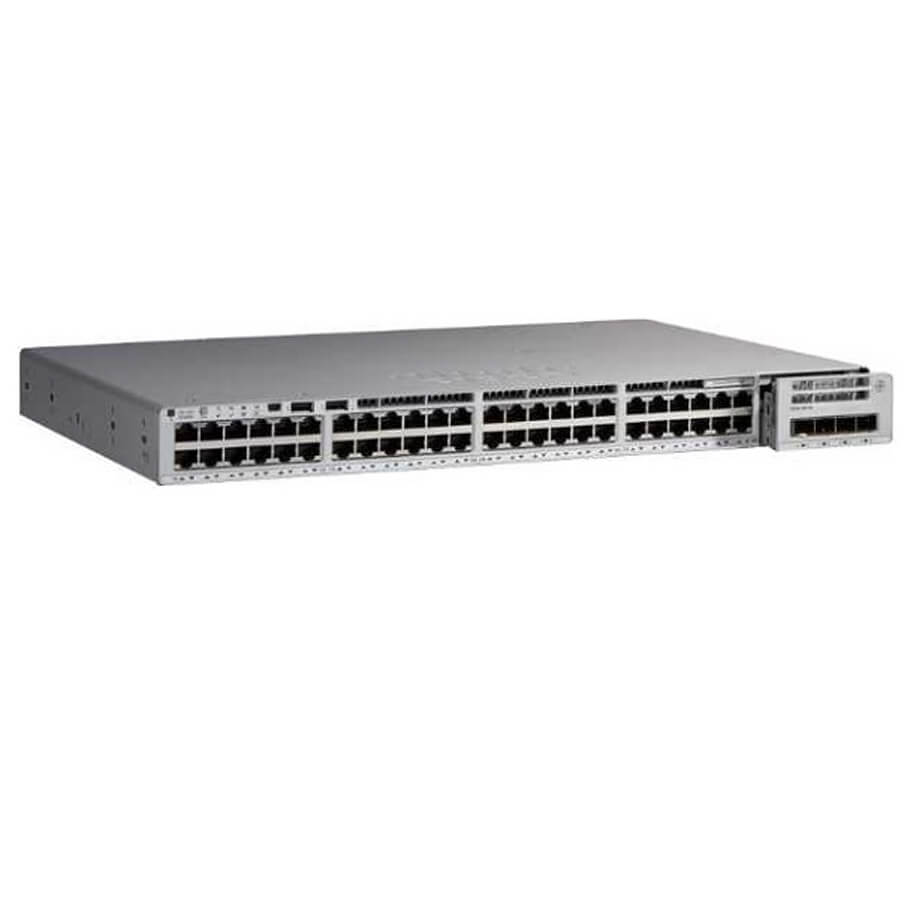

48-port Partial PoE+ + 4-Port 10G Uplink Switch Cisco C9200L-48PL-4X-E
- Catalyst 9200L là switch 48 cổng PoE+ một phần với 4 cổng uplink 10G, sử dụng phần mềm Network Essentials.
- Cổng xuống (Downlink): 48 cổng tốc độ 10/100/1000, hỗ trợ một phần PoE+.
- Cấu hình Uplink: 4 cổng cố định 1/10G.
- Nguồn điện AC mặc định: PWR-C5-600WAC.
- Băng thông xếp chồng: 80Gbps.
- Dung lượng DRAM: 2GB.
- Bộ nhớ Flash: 4GB.
- Công suất chuyển mạch: 176Gbps.
- Công suất chuyển mạch khi xếp chồng: 256Gbps.
- Tốc độ chuyển tiếp: 130,95 triệu gói tin/giây (Mpps).
- Tốc độ chuyển tiếp khi xếp chồng: 190 triệu gói tin/giây (Mpps).
- Kích thước khung: 4.4 x 44.5 x 28.8 cm.
- Trọng lượng: 4,80kg.
Thông số kỹ thuật
| Configurations | |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 Port partial PoE+ |
| Uplink configuration | 4 x 1/10G Fixed uplinks |
| Default primary power supply | PWR-C5-600WAC |
| Fans | Fixed redundant |
| PoE+ Power with primary and secondary power supplies | |
| Primary power supply | PWR-C5-600WAC |
| Available PoE power with single primary power supply only | 370W |
| Optional secondary power supply | PWR-C5-600WAC |
| Available PoE power with additional secondary power supply | 740W |
| Stacking | |
| Stacking support | StackWise-80 |
| Stacking bandwidth support | 80Gbps |
| Stacking hardware | C9200L-STACK-KIT |
| Number of members | 8 |
| Performance specifications | |
| Virtual Networks | 1 |
| Stacking bandwidth | 80Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer | 6MB |
| Flexible NetFlow (FNF) entries | 16,000 |
| DRAM | 2GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| PVST Instances | 128 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| IP SGT binding scale | 10K |
| Number of IPv4 bindings | 10K |
| Number of SGT/DGT policies | 2K |
| Number of SXP Sessions | 200 |
| Bandwidth specifications | |
| Switching capacity | 176 Gbps |
| Switch capacity with Stacking | 256 Gbps |
| Forwarding rate | 130.95 Mpps |
| Forwarding rate with Stacking | 190 Mpps |
| General | |
| Chassis Dimensions | 4.4 x 44.5 x 28.8 cm |
| Chassis + FEP + Fan Dimensions (HxWxD) | 4.4 x 44.5 x 32.9 cm |
| Weights | 4.80kg |
| Mean time between failures (hours) | 346,270hours |
| Safety certifications | - IEC 60950-1/62368-1 - UL 60950-1/62368-1 - CAN/CSA C22.2 No. 60950-1/62368-1 - EN 60950-1/62368-1 - AS/NZS 60950.1, AS/NZS 62368.1 - Class I Equipment |
| Electromagnetic compatibility certifications | - 47 CFR Part 15 - CISPR 32 Class A - CNS 13438 - EN 300 386 * - EN 55032 Class A - EN61000-3-2 - EN61000-3-3 - ICES-003 Class A - KN 32 - TCVN 7189 Class A - V-3 Class A - CISPR 35 - EN 300 386 * - EN 55035 - KN 35 - TCVN 7317 |
- Bảo hành: 12 tháng.
