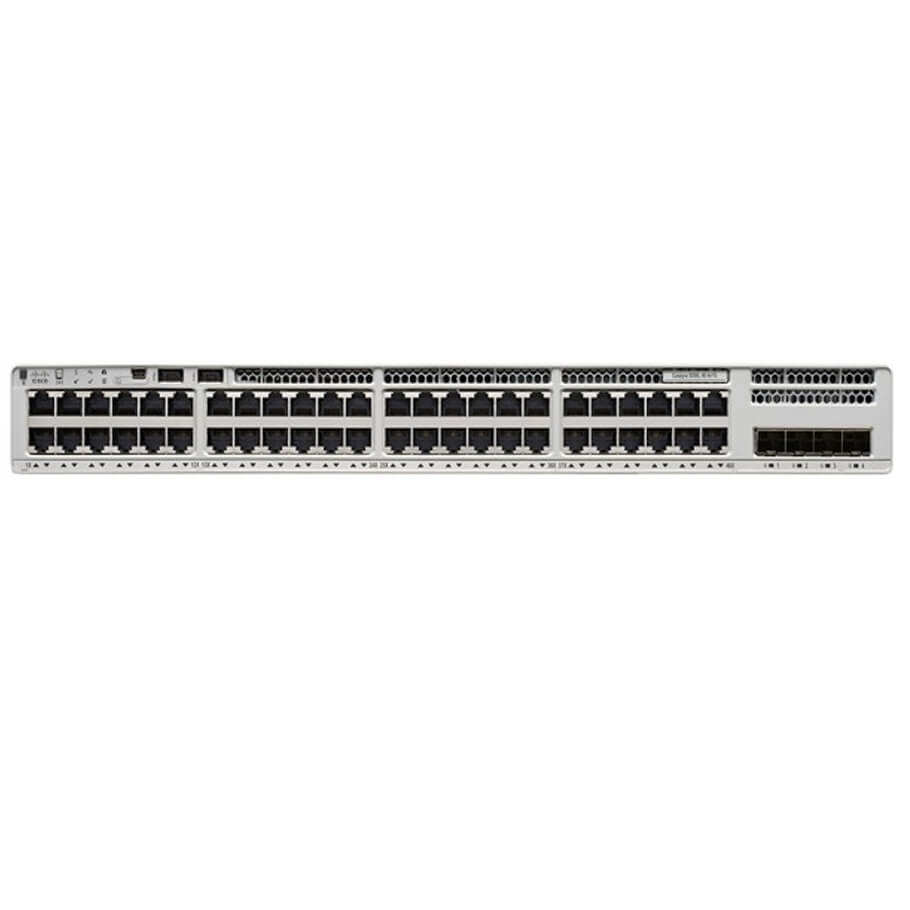

48-port Gigabit + 4x10G Uplink Switch CISCO C9200L-48T-4X-E
- Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials.
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access.
- Advanced network monitoring using Full Flexible NetFlow.
- Cisco Software-Defined Access (SD-Access)
+ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE);
+ Network assurance and improved resolution time through Cisco DNA Center.
- Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network.
- Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry.
- ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.
- Cloud monitoring for Catalyst on Meraki dashboard.
Specifications
| Performance and scalability | |
| Stacking bandwidth | 80Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1500 |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| PVST Instances | 128 |
| STP Virtual Ports (Port *VLANs) for PVST | 13,000 |
| STP Virtual Ports (Port *VALNs) for MST | 13,000 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| IP SGT binding scale | 10K |
| Number of IPv4 bindings | 10K |
| Number of SGT/DGT policies | 2K |
| Number of SXP Sessions | 200 |
| Bandwidth specifications | |
| Switching capacity | 176 Gbps |
| Switch capacity with Stacking | 256 Gbps |
| Forwarding rate | 130.95 Mpps |
| Forwarding rate with Stacking | 190 Mpps |
| Physical Specifications | |
| Chassis Dimensions | 4.4 x 44.5 x 28.8 cm |
| Chassis + FEP + Fan Dimensions (HxWxD) | 4.4 x 44.5 x 32.9 cm |
| Weight | 4.53kg |
| Mean time between failures | 503,400 hours |
- Bảo hành: 12 tháng.
