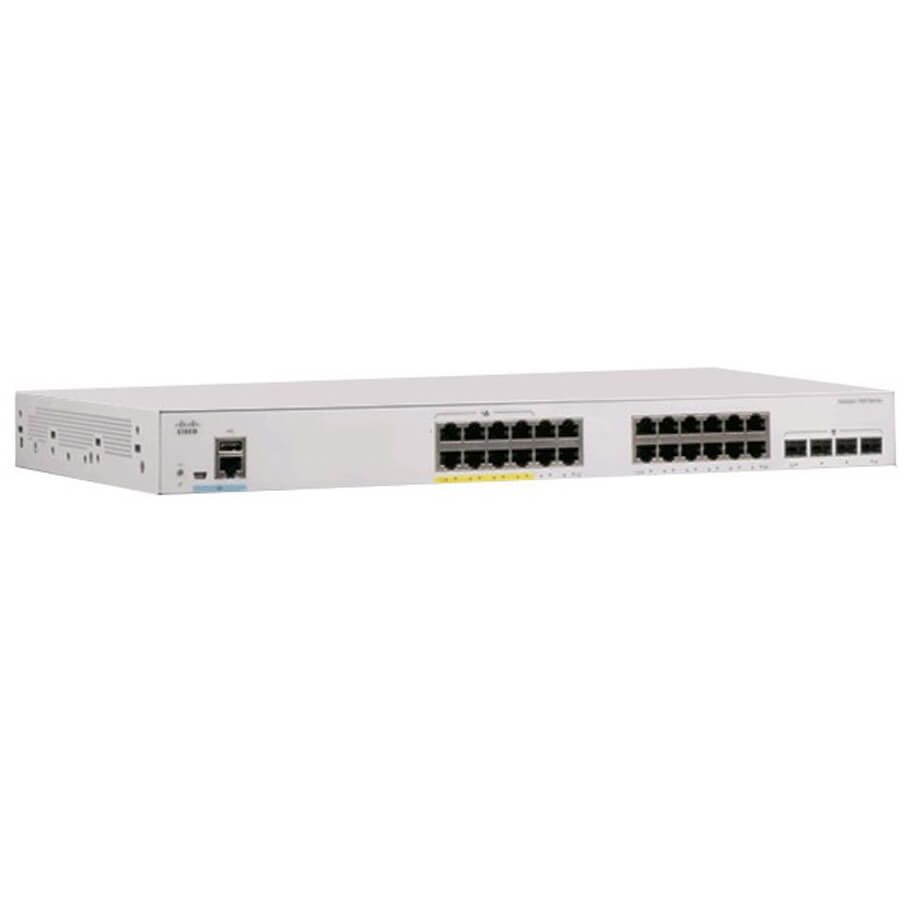

24-port Gigabit Ethernet + 4-port 10G SFP Uplinks Switch Cisco C1000-24T-4X-L
- 24 x 10/100/1000 Ethernet ports, 4 x 10G SFP+ uplinks.
- CLI and/or intuitive web UI manageability options.
- Network monitoring through sampled flow (sFlow).
- Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard.
- Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces.
- Reliability with a higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty support (E-LLW).
Specifications
| Model | C1000-24T-4X-L |
| General | |
| Gigabit Ethernet / FE ports | 24 10/100/1000 RJ45 Data |
| Uplink interfaces | 4 SFP+ |
| Fanless | Y |
| Dimensions (WxDxH) | 17.48 x 9.45 x 1.73 inch |
| Weight | 2.78kg |
| RJ-45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 64 Gbps |
| Switching bandwidth | 128 Gbps |
| Forwarding rate (64‑byte L3 packets) | 95.23 Mpps |
| MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Dying Gasp | Yes |
| MTBF in hours | 2,026,793 |
| Environmental | |
| Up to 5,000ft (1500 m) | -5 to 45 deg C |
| Upto 10,000 (3000 m) | -5 to 40 deg C |
| Operating altitude | 10,000 ft (3,000m) |
| Operating relative humidity | 5% to 90% at 40 deg C (non-condensing) |
| Storage temperature | -13 to 158F (-25 to 70C) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidi | 5% to 95% at 65 deg C (non-condensing) |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.20A to 0.33A |
| Power rating (maximum consumption) | 0.06 kVA |
| Safety and compliance | |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011 |
| EMC: Emissions | 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
| Connectors and interfaces | |
| Indicator LEDs | Per-port status: link integrity, disabled, activity System status: System |
| Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet Models have external power supply |
