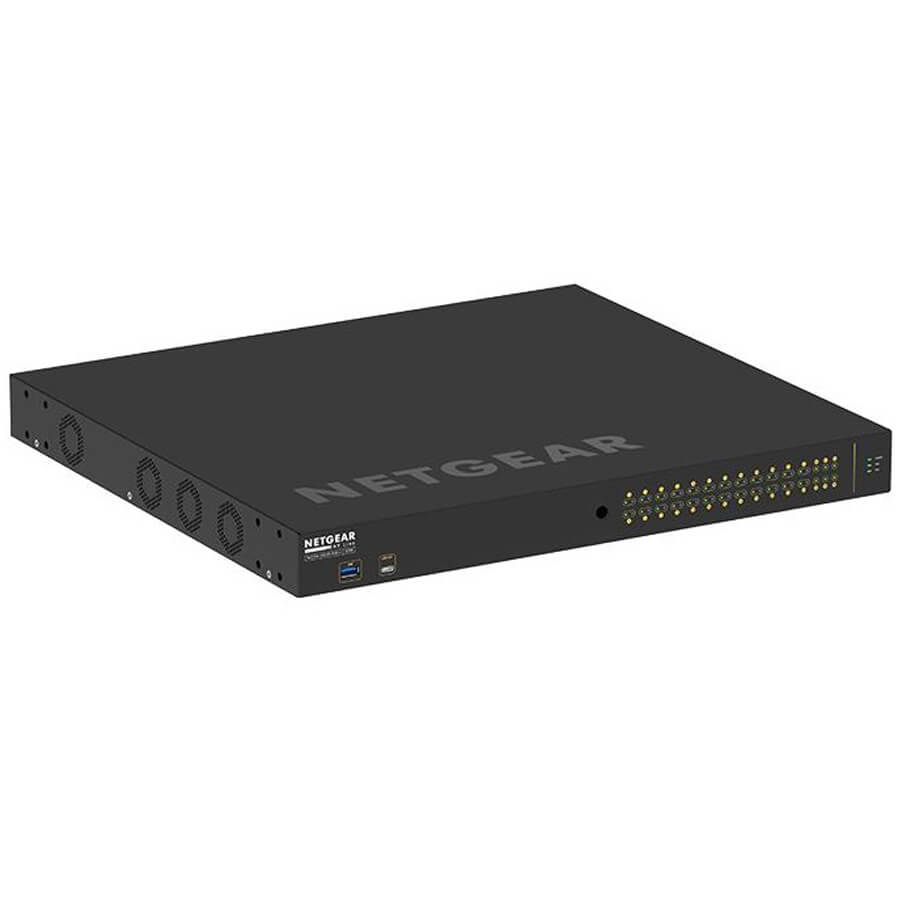

30-Port Layer 3 Managed Switch NETGEAR GSM4230UP
- CPU/RAM/FLASH: Quad-Core Cortex-A57 ARMv8 1.8Ghz (64-bit)/2GB RAM/256MB Flash
- 1-port 1G Out-of-band RJ45 + 24x10/100/1000 Ultra90 PoE++ RJ45 + 4x1G SFP.
- PoE standard: 802.3af (15.4W), 802.3at (30W) và 802.3bt (60W, 75W and 90W)
- Stacking: Không hỗ trợ.
- Bandwidth/Throughput: 60 Gbps/44.64 Mpps.
- MAC/ARP Table/IP Multicast Routing Entries/IGMP: 16K/4K/512 IPv4, 128 IPv6/2K IPv4, 2K IPv6.
- VLAN/ACLs/Packet Buffer/Jumbo Frames: 4K/100/16Mb/Up to 12K packet size.
- Application Route Scaling: Static: 64 v4/64 v6, RIP: 32v4.
- Layer-3: IPv4/IPv6 Static Routing, IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM.
- Audio profiles: Dante, Q-SYS, AES67 và AVB.
- Video profiles: NVX, SVSI, Q-SYS, NDI và Dante, ...
- PoE Power Budget (Watts): 1 PSU used - 720W, 2 PSU used- 1440W
- Fan/PSU/Form Factor: Side-to-side airflow, 2 x Fixed Internal (C14 inlet) On/Off switch, 1U Rackmount.
* AVB license mua riêng theo từng model switch.
Thông số kỹ thuật
| Model | GSM4230UP |
| Primary Port Speed | 1 Gigabit |
| Number of Ports | 30 (24x 1G PoE++, 2x 1G, 4x SFP) |
| PoE Ports / Budget | 24 PoE++ (90W/port), 1,440W Budget |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S). |
| Acoustics | Fanless or 60dB@25ºC |
| Power Consumption | Single AC With PoE: 889W/3035.05Btu/hr Dual AC With PoE: 1734W/5919.88Btu/hr Without PoE: 48.8W/166.6Btu/hr Standby without any port connection: 36.9W/125.98Btu/hr |
| Third party support | Domotz |
| Dimensions (WxDxH) | 440 x 400 x 43.2 mm |
| Weight | 6.75Kg |
- Bảo hành: 3 năm.
