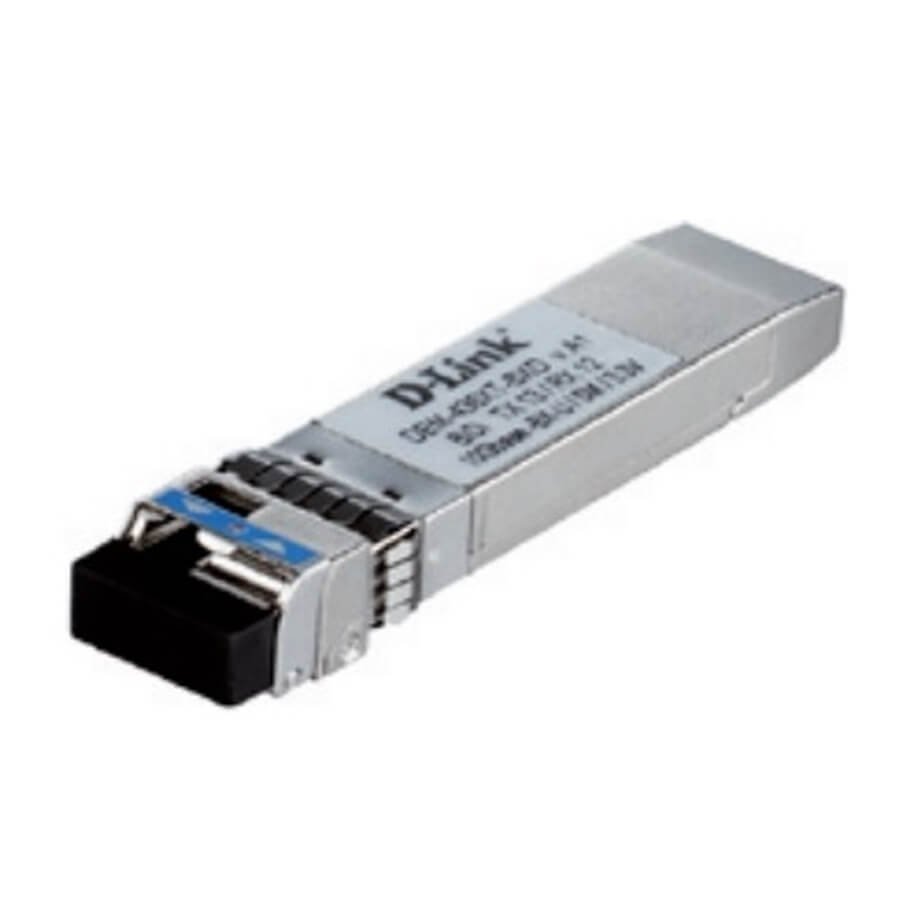

10G (Simplex LC) BiDi SFP+ Transceiver D-Link DEM-438XT-BXD
- Has an Enhanced Small Form-Pluggable (SFP+) form
- Supports Single-Mode 9/125 um cable types with a maximum range of 80km
- Has wavelength TX: 1550 nm, RX: 1490 nm
- Using Simplex LC Connector
- Hot pluggable, can be removed directly from the device even if the switch is on
- In accordance with MSA (Multiple Source Agreement), for compatibility between Vendors
- Complies with 10G Ethernet standards IEEE802.3ae and 802.3aq
Specifications
| Model | DEM-438XT-BXD |
| Standard Compliance | IEEE-802.3ae, 10GBASE-ZR |
| Form Factor Type | SFP+ |
| Fiber Media Support | Single-Mode |
| Distance Capacity | 80 km |
| Hot Pluggable | Yes |
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| Speed | 10 Gbps |
| Connector | Simplex LC Connector |
| Single/Bi-Directional | WDM Bi-directional |
| Wavelength | TX: 1550 nm, RX: 1490 nm |
| Output Optical Power (TX Optical Power) |
Max.: 5 dBm Min.: 0 dBm |
| Input Optical Power (RX Optical Power) |
Max.: 0.5 dBm Min.: -21dBm |
| Sensitivity | -15 dBm |
| Cable Type | Single-mode 9/125 um fiber |
| Power | 3.3V |
| Maximum Input Current | 3.3 V: 450 mA |
| Minimum Power Budget | 24 dB |
| Maximum Power Budget | 28 dB |
| Heat Generated | 5.35 kJ/h |
| Operating Temperature | -40 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Humidity | 5 to 95% |
| Storage Humidity | 5 to 95% |
| Dimension (W x D x H) | 14.8 x 56.5 x 11.85 mm |
| Weight | 22g |
- Bảo hành: 36 tháng.
